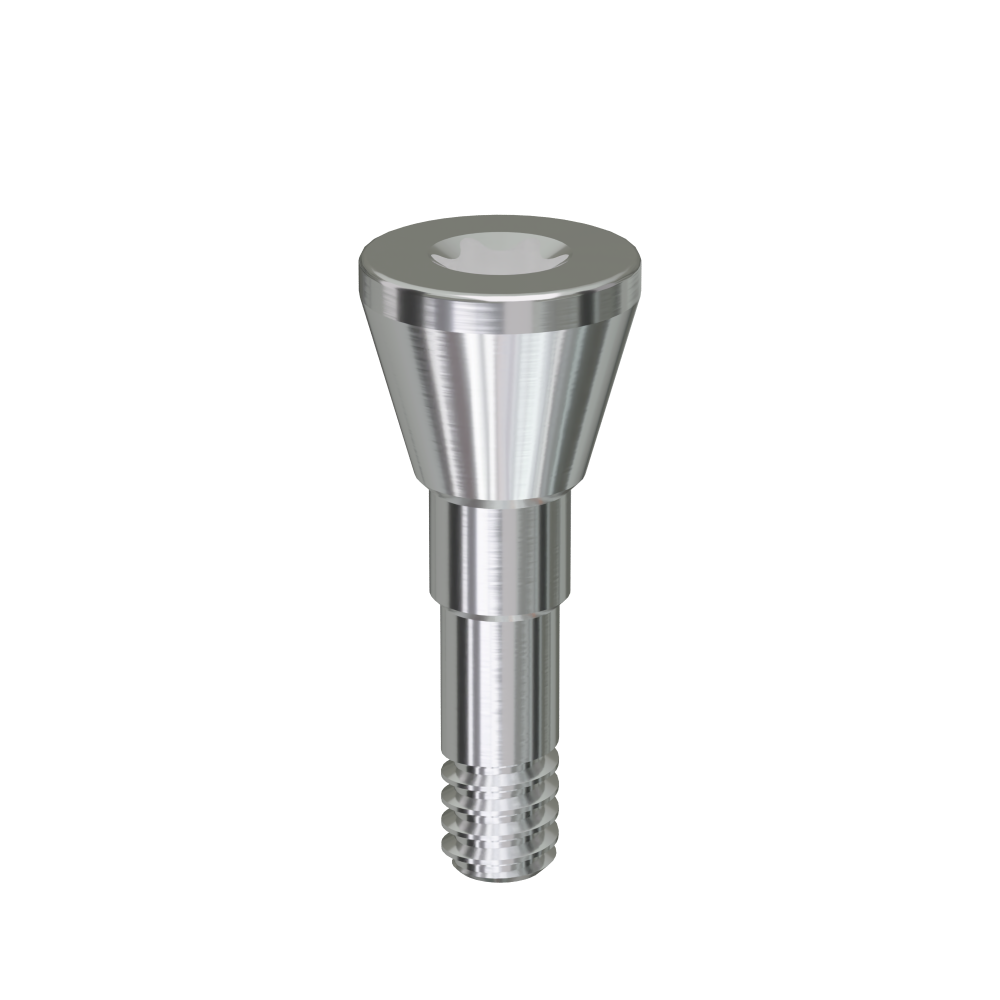

Healing Abutment

Material: Titanium Alloy

Implant System:	Straumann® Bone Level® Anthogyr® Axiom MegaGen AnyOne®& ST Implant System Nobel Biocare® Medentis® ICX Osstem® NEO BB DIO ITI others
SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Overview

KT trilink dental healing abutments are used after stage‑one implant surgery or before stage‑two surgery. They pass through the gingiva to create a stable transmucosal channel, guiding gingival emergence profile formation and providing an ideal aesthetic foundation for the final restoration. Made of medical‑grade 5 titanium or medical‑grade PEEK, available in multiple emergence heights and diameters. 100% vision measurement system inspection ensures interface accuracy. The smooth abutment surface promotes soft tissue attachment, reduces bacterial retention, and enhances patient comfort during the healing phase.

We will provide you with one-on-one professional services to start a new chapter of win-win cooperation!

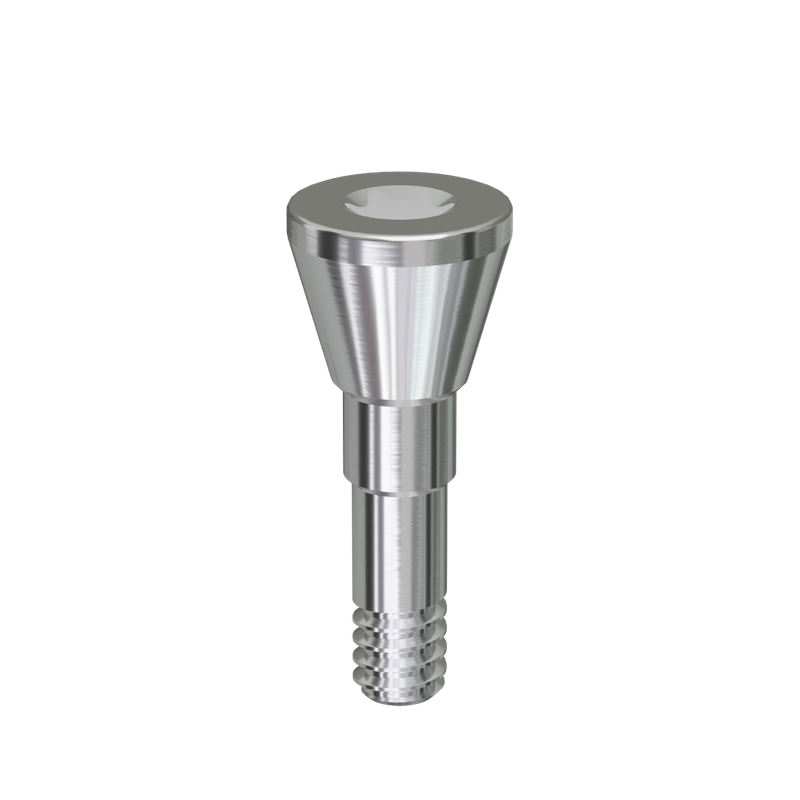

Healing Abutment

Shape the gingiva, define the aesthetics.

Gingival emergence profile shaping

Precisely shapes the transmucosal contour

Lays the foundation for aesthetic restorations

Multiple sizes available

Emergence height 2–8 mm

Diameter 4.0–6.0 mm

Smooth surface

Reduces plaque adhesion

Promotes soft tissue healing

100% vision measurement system inspection

Every product undergoes full dimensional inspection to ensure accurate fit

Product Specifications

Product Name	Healing Abutment
Brand	KT trilink dental
Material	Medical Grade 4 Titanium (Ti-6Al-4V ) or Medical‑grade PEEK
Emergence Height (GH)	2.0mm / 3.0mm / 4.0mm / 5.0mm / 6.0mm / 7.0mm / 8.0mm
Abutment Diameter	Ø4.0mm / Ø4.5mm / Ø5.0mm / Ø5.5mm / Ø6.0mm
Interface Type	Hexagon / Tri‑lobe / Conical (Morse) / Cross‑Lock
Compatible Implant Systems	Straumann®, Nobel Biocare®, Dentsply Sirona®, Zimmer®, Osstem®, MegaGen®, Dentium®, Hiossen®, etc.
Place of Origin	Guangdong, China
Sales Unit	Individually packaged, sterile or non‑sterile options available
Warranty	6 months (non‑human damage)
Inspection Method	100% vision measurement system inspection; interface tolerance ±0.01 mm; inspection report provided per batch
OEM/ODM Support	Yes; custom emergence heights and color coding available

Get Exclusive Quotation

Contact Us

Compatible Implant Systems & Interface Models Overview

This product supports the following major implant systems and offers a variety of precision interface options, ensuring perfect compatibility with various brands:

Interface Standards

• Hexagon (internal/external)

• Tri-lobe

• Conical / Morse taper (Conical 11.5°/8°)

• Cross-Lock

Verified Compatible Brands

Straumann® · Nobel Biocare® · Dentsply Sirona® · Zimmer Biomet® Osstem® · Hiossen® · MegaGen® · Dentium® · Bicon® · BioHorizons®

For other brands, interface drawings are available upon request to verify compatibility.

For other brands, interface drawings are available to verify compatibility.

Typical Clinical Scenarios – Throughout the Healing and Contouring Cycle

Immediately after stage‑one surgery

Healing abutment connected directly after implant placement, replacing the cover screw and avoiding a second surgery to expose the implant.

Gingival emergence profile formation

During osseointegration, the healing abutment guides the soft tissue to form a natural transmucosal profile, preventing “black triangles” after final restoration.

Emergence height selection

Choose the appropriate emergence height (2–8 mm) based on gingival thickness to ensure the abutment top is level with or slightly above the gingival margin.

Transition to final restoration

After removing the healing abutment, an impression post or scan body can be directly connected for a seamless transition to the prosthetic phase.

“After using KT healing abutments, the gingival healing morphology was ideal. The emergence profile was intact at impression taking, and the aesthetic result far exceeded expectations.”

– Implant dentist at a dental clinic in Shanghai

Patient Experience

More Comfortable Healing, More Aesthetic Results

Reduced pain and irritation

The rounded edge design of the healing abutment avoids sharp angles irritating the gingiva, significantly reducing postoperative foreign body sensation.

Easy cleaning and maintenance

The smooth surface resists food debris accumulation. Patients can gently clean with a soft brush to maintain oral hygiene.

Peace of mind

Knowing that the implant is undergoing “protected healing” helps patients relax and better comply with postoperative recovery.

Aesthetic foundation

A well‑formed gingival emergence profile provides a natural aesthetic framework for the final all‑ceramic crown, avoiding exposure of a metal margin.

Simple Clinical Workflow

Select the appropriate size

Choose emergence height based on gingival thickness, and diameter based on the implant platform.

Connect to the implant

Hand tighten, then torque to 20–25 N·cm (titanium) or 15 N·cm (PEEK).

Suture the soft tissue

Place circumferential or interrupted sutures around the abutment to ensure stable adaptation.

Healing and replacement

After 4–6 weeks of soft tissue healing, remove the healing abutment and proceed with impression taking or scanning.

※ Healing abutments are single‑use or can be sterilized and reused (titanium alloy type). Clinical judgment is advised.

Quality Control & After-Sales Service

100% Vision Measurement System Inspection

Every batch of healing abutments undergoes high-precision vision measurement system inspection of critical dimensions. Interface tolerance: ±0.01 mm, ensuring a sealed fit with the implant.

6-Month Warranty

Free replacement for non-human damage.

7-Day Return & Exchange

For standard products, if size discrepancy or interface defect is found within 7 days of receipt, unconditional return or exchange.

Clinical Feedback

“The emergence height of the healing abutment is very precise. The gingival healing morphology is ideal, and no additional modification is needed at impression taking.”

————A digital implant center in Shenzhen

“Excellent surface smoothness; patients report good comfort. At follow-up, the surrounding tissue is healthy with no inflammation.”

————A dental clinic in Chengdu

Free healing abutment sample kit (includes 3 commonly used emergence heights) – Exclusive for clinics/labs.

Clinical Cases:

Healing Abutments Deliver Both Aesthetics and Function

Case 1: Soft tissue contouring in the anterior aesthetic zone

Aesthetic restoration · Gingival morphology

Female patient, single anterior maxillary implant. A titanium healing abutment with 4 mm emergence height was placed after stage‑one surgery. After a 4‑week healing period, a natural and full gingival emergence profile was formed. The final all‑ceramic crown showed no “black triangle,” and the aesthetic outcome was satisfactory.

Case 2: Consistent emergence profile in posterior multi‑unit case

Multi‑unit · Consistency

Three consecutive implants in the mandibular posterior region. Healing abutments of 3 mm, 4 mm, and 5 mm emergence heights were selected according to the gingival thickness at each site. After healing, the emergence profiles were consistent in height. At impression taking, the scan body seated smoothly, and the final bridge achieved good passive fit.

FAQ

What is the difference between a healing abutment and a cover screw?

A cover screw is placed below the gingiva and requires a second surgery for exposure. A healing abutment passes through the gingiva, guides soft tissue emergence profile formation, eliminates the need for a second surgery, and achieves a more ideal transmucosal contour.

How do I select the appropriate emergence height?

How do I choose between titanium alloy and PEEK healing abutments?

Does the healing abutment require daily cleaning by the patient?

Are the healing abutments compatible with all implant systems?
