KT Trilink

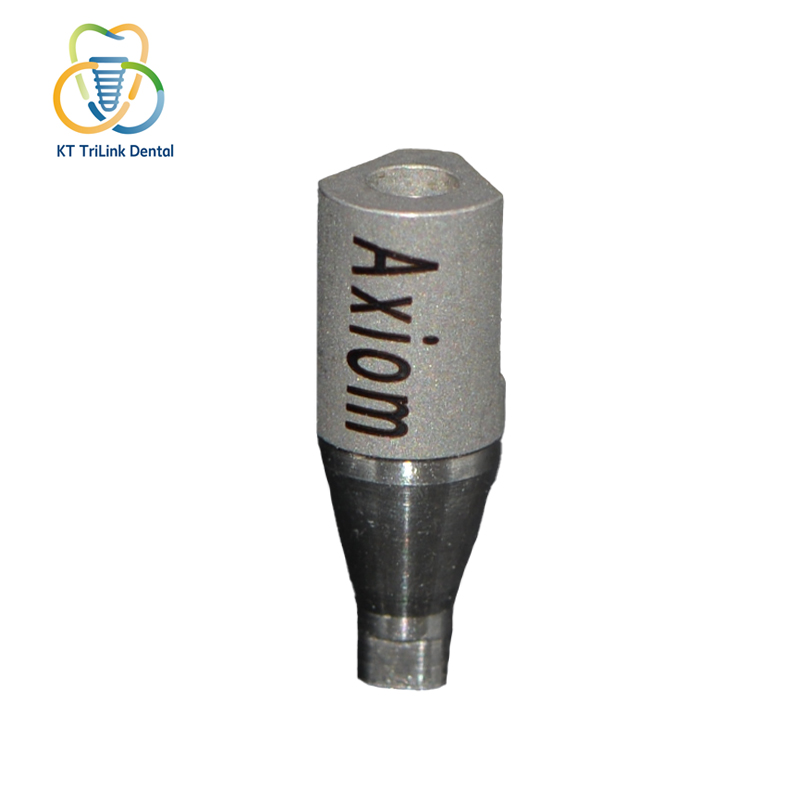

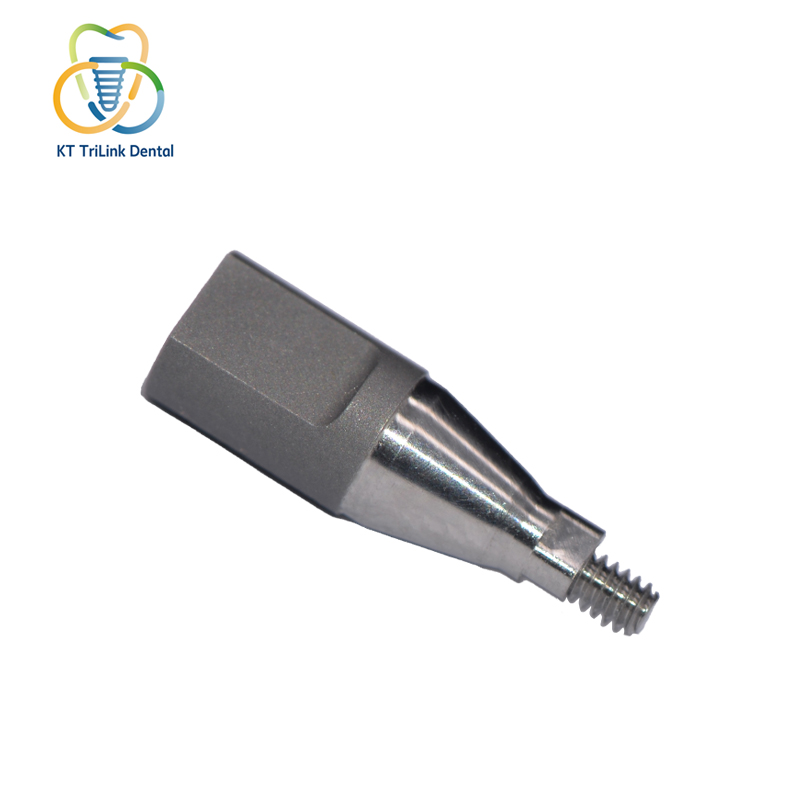

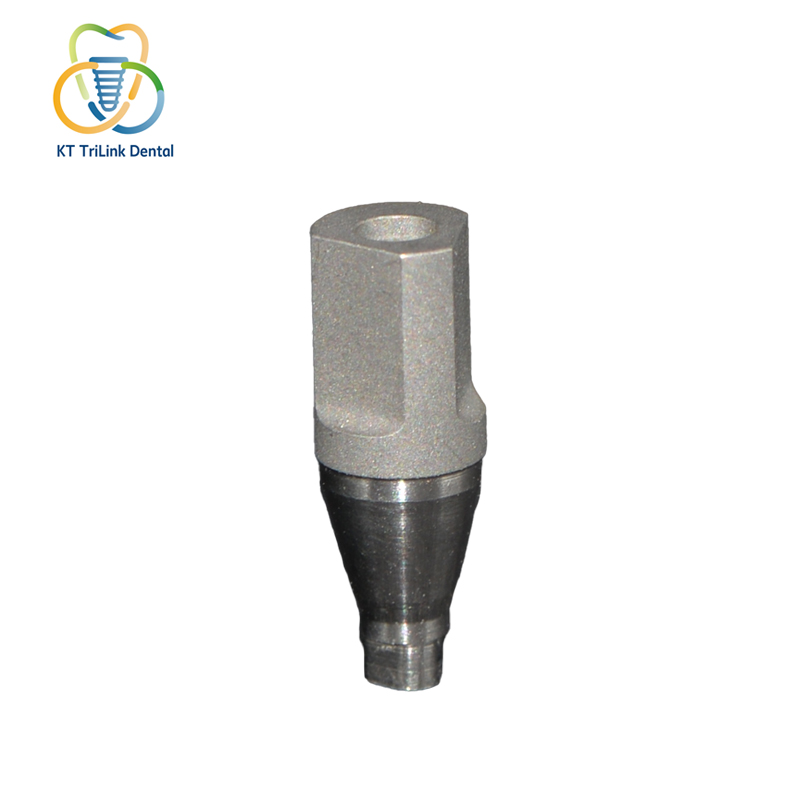

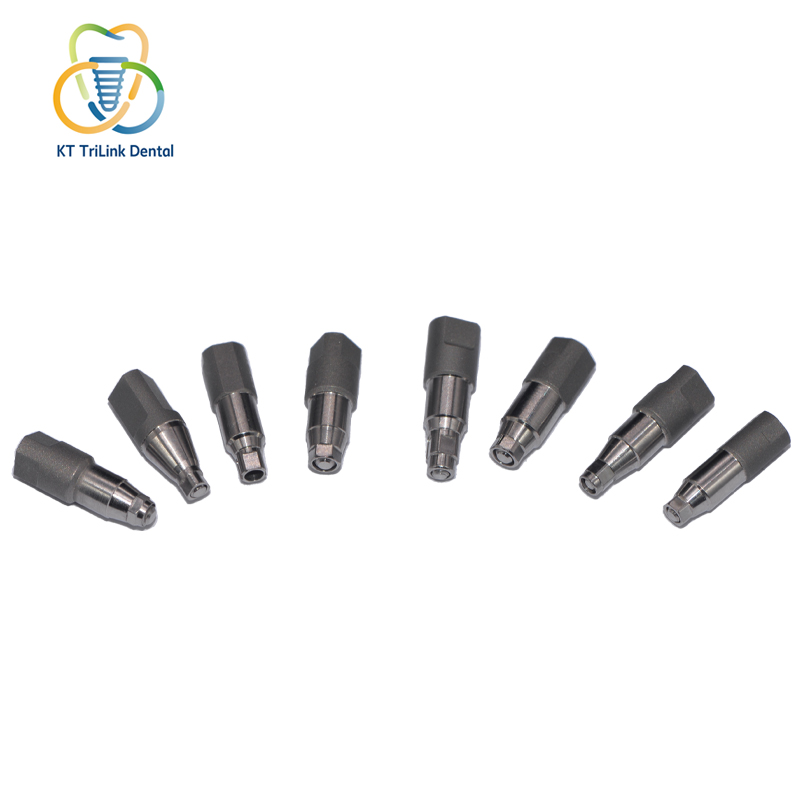

This series consists of third-party Anthogyr Axiom®-compatible scan bodies independently manufactured by Ketai, including implant-level and Multi-Unit abutment-level models. Anthogyr-Axiom is used for digital impressions of Axiom Bone Level implants.The products must be used with the corresponding Ketai CAD database and digital restorative components. They are suitable for purchase by dental clinics, dental laboratories, digital design centers, and dental implant component distributors.

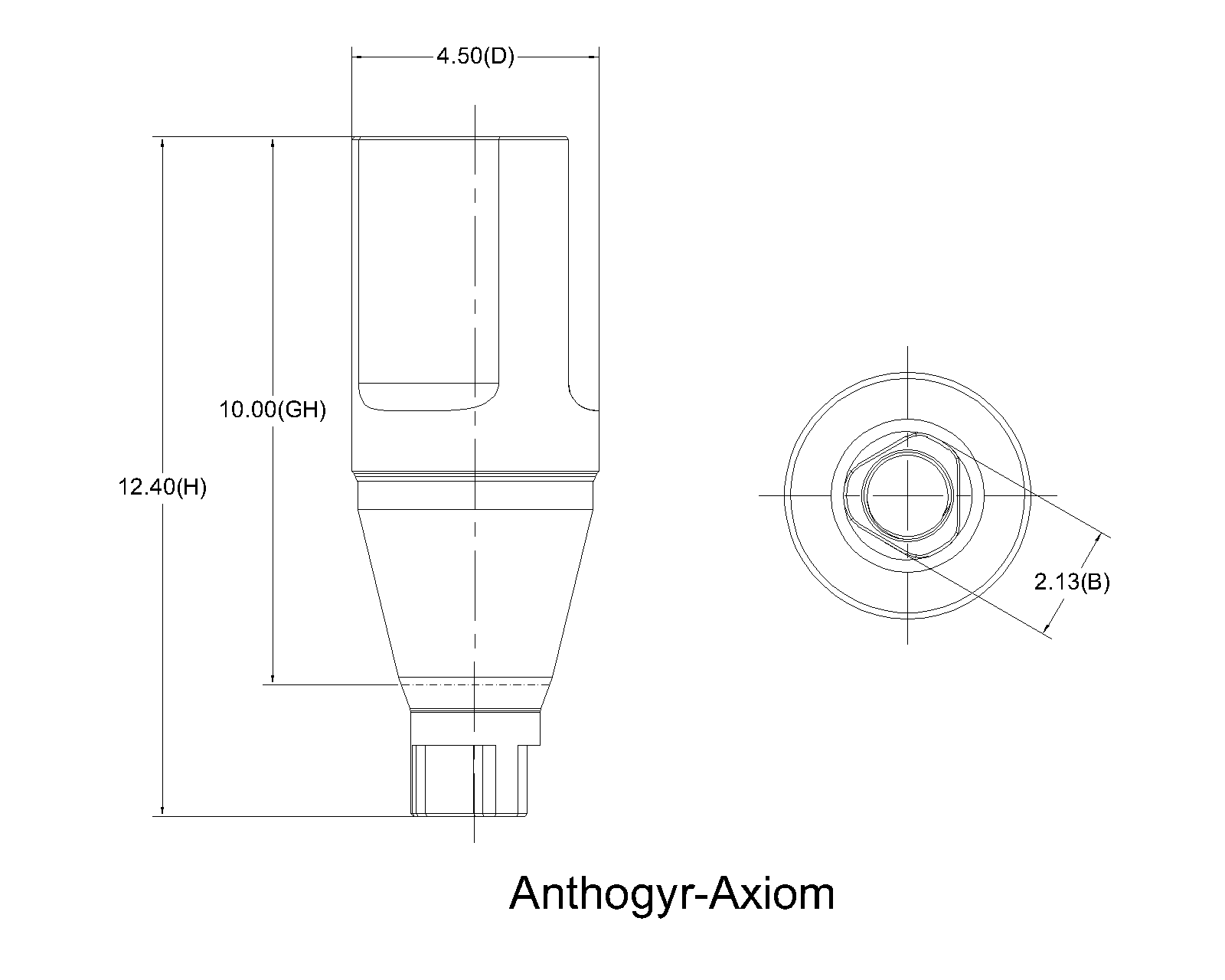

| Dimensions | Diameter(D)/(mm) | Emergence height (GH)/(mm) | Height (H)/(mm) | Anti‑rotation dimensions |
| Anthogyr-Axiom | 4.50 | 10.00 | 12.40 | 2.13 |
| Scan Body Model | Scan Body Size | Compatible Implant System | Compatible Implant Diameter |
| Anthogyr-Axiom | Ø4.5 mm,GH 10mm | Axiom BL X3 / REG / PX | Ø4.5 mm |
Which implants are compatible with the Anthogyr-Axiom system?
The Anthogyr-Axiom system is compatible with Axiom BL X3, REG, and PX implants, all of which utilize the unified Axiom Bone Level prosthetic connection. When different implant diameters share the same prosthetic connection, the corresponding implant-level scan bodies can be used interchangeably.
Do Axiom BL implants of different diameters require different scanbodies?
Why does the shape of your scanbody differ from the original Anthogyr scanbody?
1. As an independent third-party manufacturer of dental implant components, our products are compatible with multiple brands; if we were to replicate the exact appearance of the original manufacturer's components, the resulting variety of scan body shapes would make it difficult to identify the actual designer.
2. Adopting the original manufacturer's scan body design would limit product expandability (for example, it might not be possible to implement an extended-length design).
Is the corresponding CAD library provided?
Yes, we provide CAD libraries compatible with various scan body models and scanning levels.
Before use, you must verify that the scan body model in the library matches the physical component.
What information should I provide before ordering?
To help us identify the correct scan body, please provide the following information:
1.Implant brand and series;
2.Restorative connection type;
3.Specific specifications of the required components;
4.Quantity required;
Alternatively, you can discuss the details once our technical staff contacts you.
