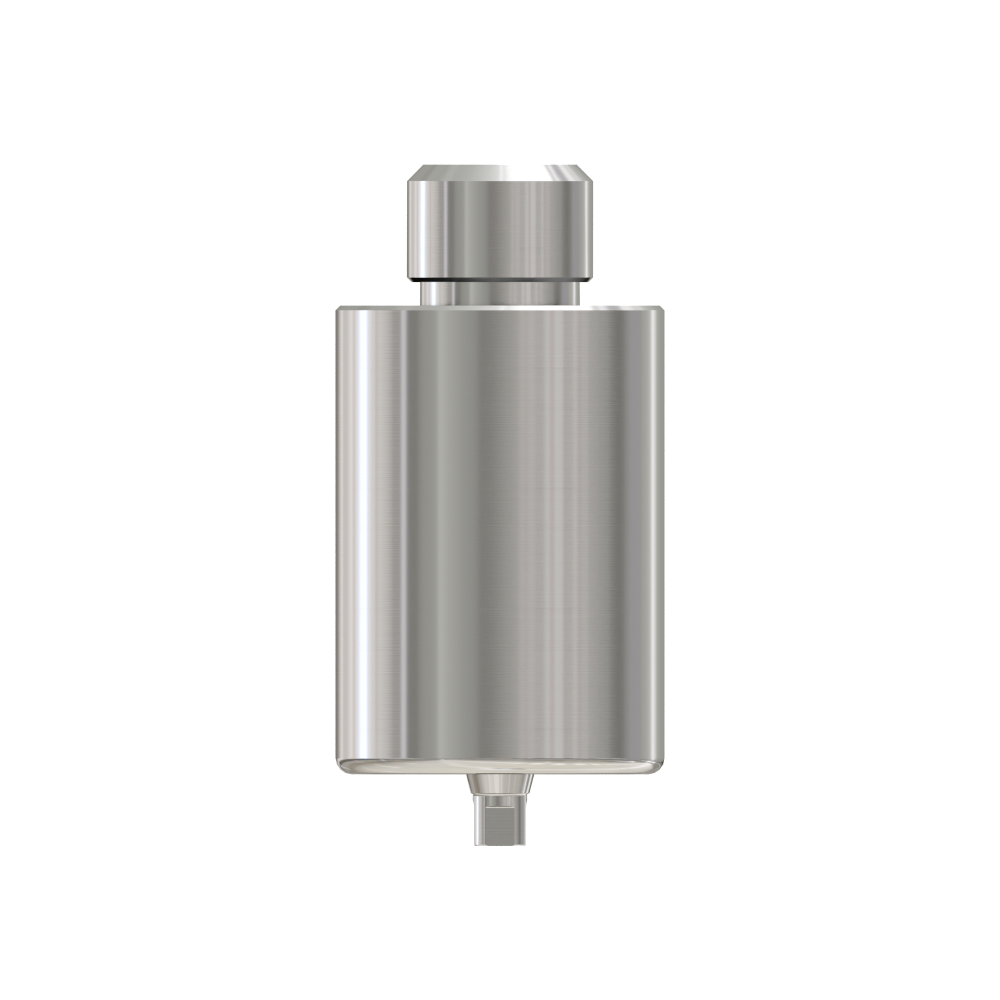

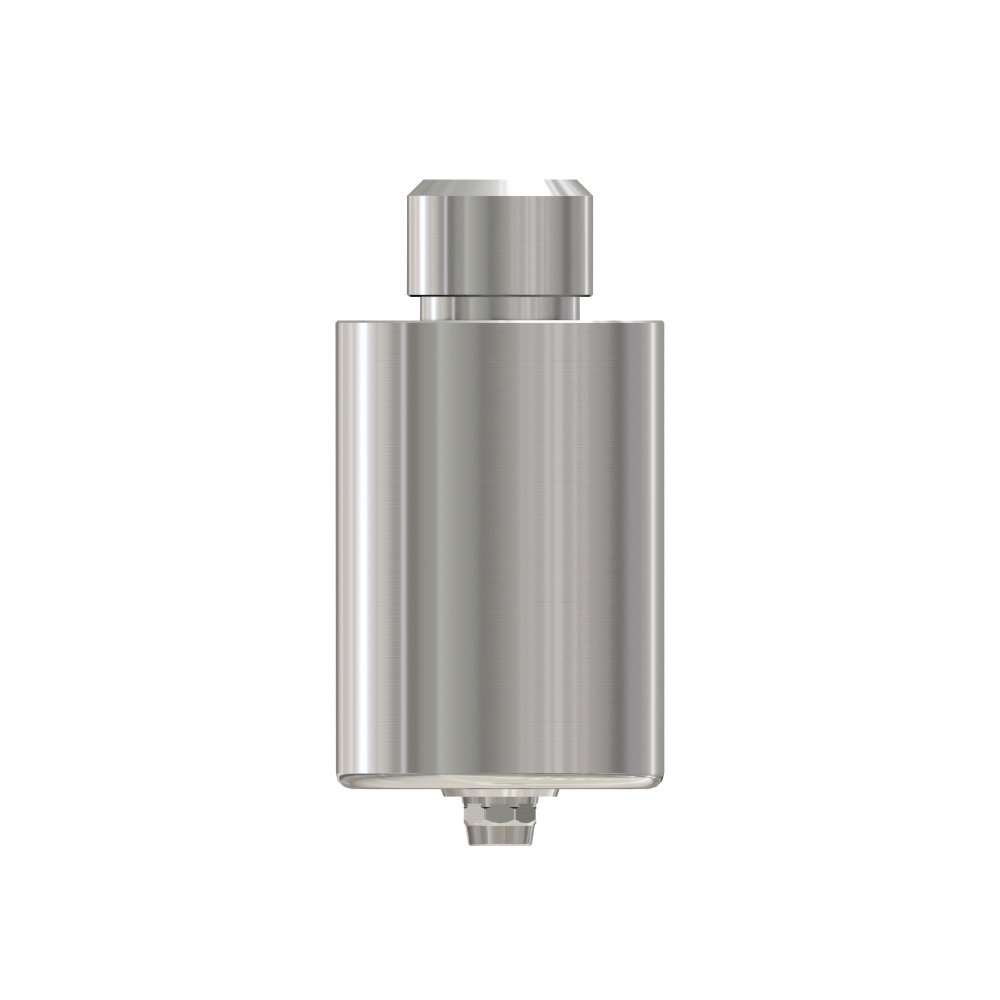

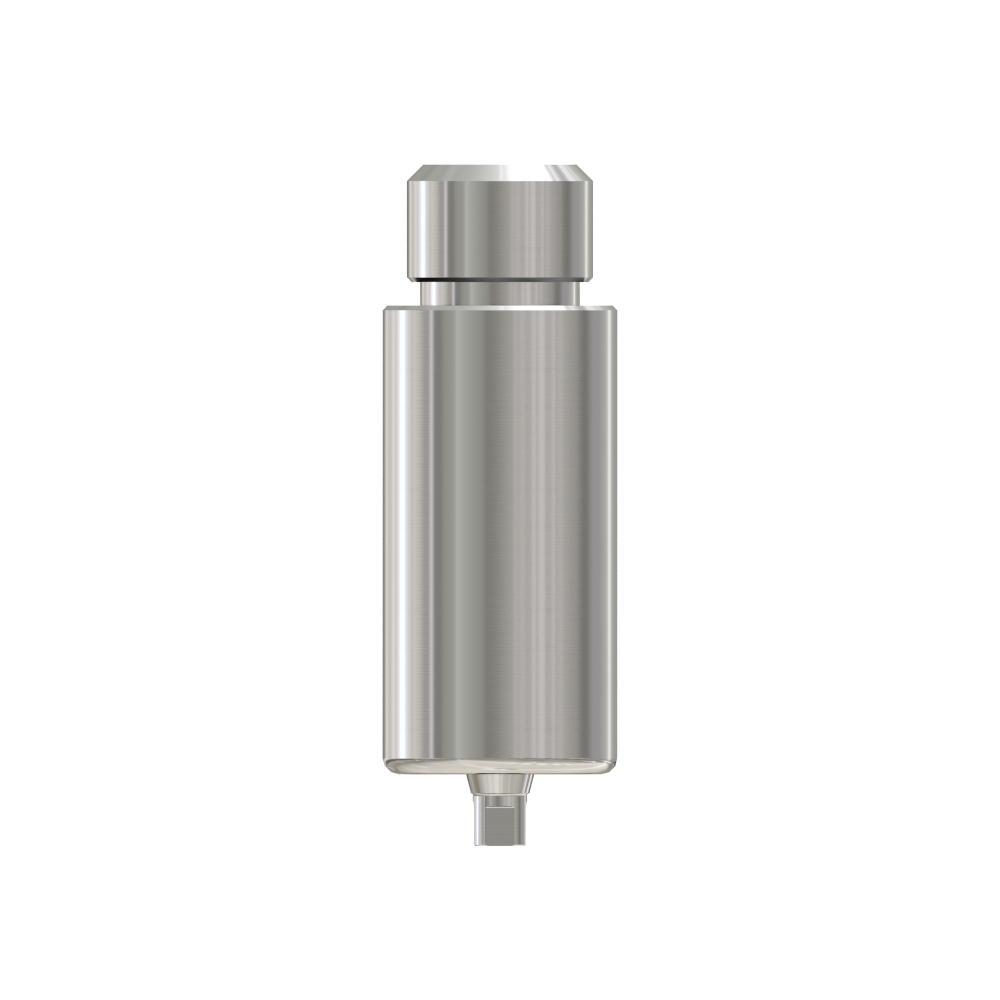

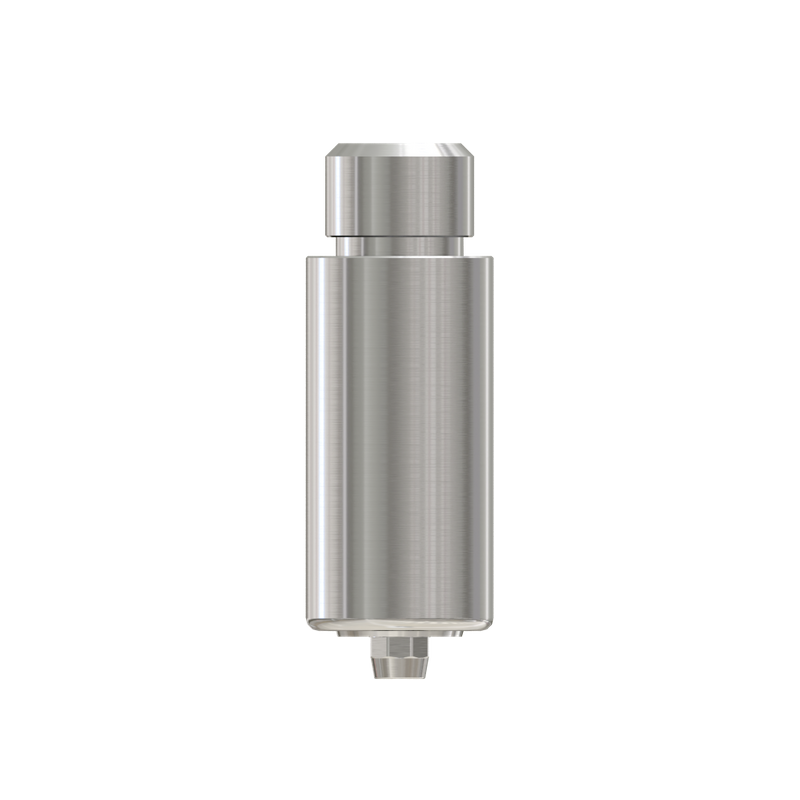

Pre-milled Titanium Blanks

Implant System:	Straumann® Bone Level® Anthogyr® Axiom MegaGen AnyOne®& ST Implant System Nobel Biocare® Medentis® ICX Osstem® NEO BB DIO ITI others
Implant Connection:	External Hex Internal Octagon Internal Hex Morse Taper Connection Conical Tri-Channel Connection Conical Four-Lobe Connection CrossFit Connection Conical Internal Hex Connection
SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Overview

KT trilink dental Preformed Titanium Blank – Engineered for Custom Abutment Milling

Made of medical-grade 4 titanium (Ti-6Al-4V ), strictly compliant with international medical standards. Each blank is precision CNC-machined and comes with a dual screw system (one for lab use, one for clinic use). Whether for single implant restorations or complex multi-unit cases, it provides confidence throughout the entire process – from milling to final delivery.

Pre-milled Titanium Blanks

More than just a blank, it is the ultimate starting point for a custom abutment.

Material

Medical Grade 4 Titanium (Ti-6Al-4V )

Prevents food impaction and bacterial ingress

Pre-milled near-net shape

Reduces milling path by more than 40% compared to cylindrical blanks, extending tool life

Tri-Secure™ pre-formed interface

Tolerance ±0.005 mm – virtually no hand finishing required

Dual screw accessory

Lab screw + clinical screw – ready to use out of the box

Product Specifications

Product Name	Preformed Titanium Blank
Brand	KT trilink dental
Material	Grade 4 Titanium (Ti-6Al-4V ), ASTM F136 certified
Actual Diameter (Standard Range)	14mm / 16mm / 18mm (customizable 10mm–25mm)
Actual Height (Standard Range)	12mm / 15mm / 20mm (customizable 10mm–30mm)
Pre-formed Interface	Triangle / Hexagon / Octagon / Cross-Lock / Spline / Taper / Morse taper
Place of Origin	Guangdong, China
Sales Unit	Individually packaged (includes two screws: lab screw + clinical screw)
Warranty	Lifetime warranty (material or manufacturing defects)
Sterile/Regular Packaging	Optional vacuum packaging or sterile packaging; ready to use with no oxidation layer upon opening
CNC Machined	Yes (100% CMM inspected)
OEM/ODM	Supported; non-standard sizes customizable for bulk orders

Get Exclusive Quotation

Contact Us

Compatible Implant Systems & Interface Models Overview

This product supports the following major implant systems and offers a variety of precision interface options, ensuring perfect compatibility with various brands:

Interface Standards

• Hexagon (internal/external)

• Tri-lobe

• Conical / Morse taper (Conical 11.5°/8°)

• Cross-Lock

Verified Compatible Brands

Straumann® · Nobel Biocare® · Dentsply Sirona® · Zimmer Biomet® Osstem® · Hiossen® · MegaGen® · Dentium® · Bicon® · BioHorizons®

For other brands, interface drawings are available upon request to verify compatibility.

Applications

Custom anatomical abutment

Accurately replicates the emergence profile, preserving gingival health

Angulated abutment milling

Up to 15 mm diameter, easily achieves 0°–30° angle correction

Multi-unit bridge abutment

Height up to 20 mm, meets long-span restoration requirements

One-piece abutment for temporary/final restoration

Combines Grade 4 titanium strength and biocompatibility, suitable for final restorations

CAD/CAM Seamless Integration

Free digital design library – Supports Exocad, 3Shape, DentalWings, and Blender for Dental, enabling dental labs to design freely.

Open CAM software database – Provides a preformed titanium blank library compatible with hyperDENT®, millbox®, iCAM V5®, WorkNC®, and the vast majority of CAM post-processors on the market.

Plug-and-play – Shortens programming time and lowers the cost per abutment.

Download CAD/CAM plug-in library

Quality & Service

More than just selling blanks, we deliver peace of mind

Lifetime Warranty

Any issue caused by material or manufacturing defects – free replacement for life.

7-Day Return & Exchange

Unconditional return or exchange for size discrepancies or interface defects (standard items only).

100% Dimension Inspection

CMM verified to ensure passive fit.

Customer Testimonials

“Interface precision is impressive, and the dual-screw design is a thoughtful touch – lab workflow time reduced by 30%.”

———— A digital dental center in Shenzhen

“OEM prototyping is fast with great collaboration; we’ve switched to bulk orders.”

———— A dental technology company in Shanghai

Free Protective Cap sample kit (includes 3 commonly used sizes) – Exclusive for clinics/labs.

Real‑Life Case: How the Protective Cap Improves Patient Healing Experience

Case 1: Worry‑Free Eating After Surgery

Mr. Zhang, a patient who received a mandibular posterior implant, used the protective cap after surgery. On the third day, he ate rice normally with no food impaction pain. At follow‑up, the implant interior was clean with no residual debris.

Case 2: Easy Cleaning and Maintenance

For a patient with poor oral hygiene habits, the protective cap allowed easy cleaning of the surrounding gingiva with a water flosser, and no peri‑implant mucositis occurred.

FAQ

Does the protective cap need to be removed and cleaned daily?

No. Patients simply brush normally and clean the exterior of the protective cap with a water flosser. During follow‑up visits, if the clinician needs to inspect the implant interior, the cap can be removed, cleaned, and then re‑placed or replaced with a new one.

Is the protective cap material safe? Could it fall into the mouth?

How long can the protective cap be used?

Is it compatible with all implant systems?

Can I get a free sample for clinical trial?
