Product Overview

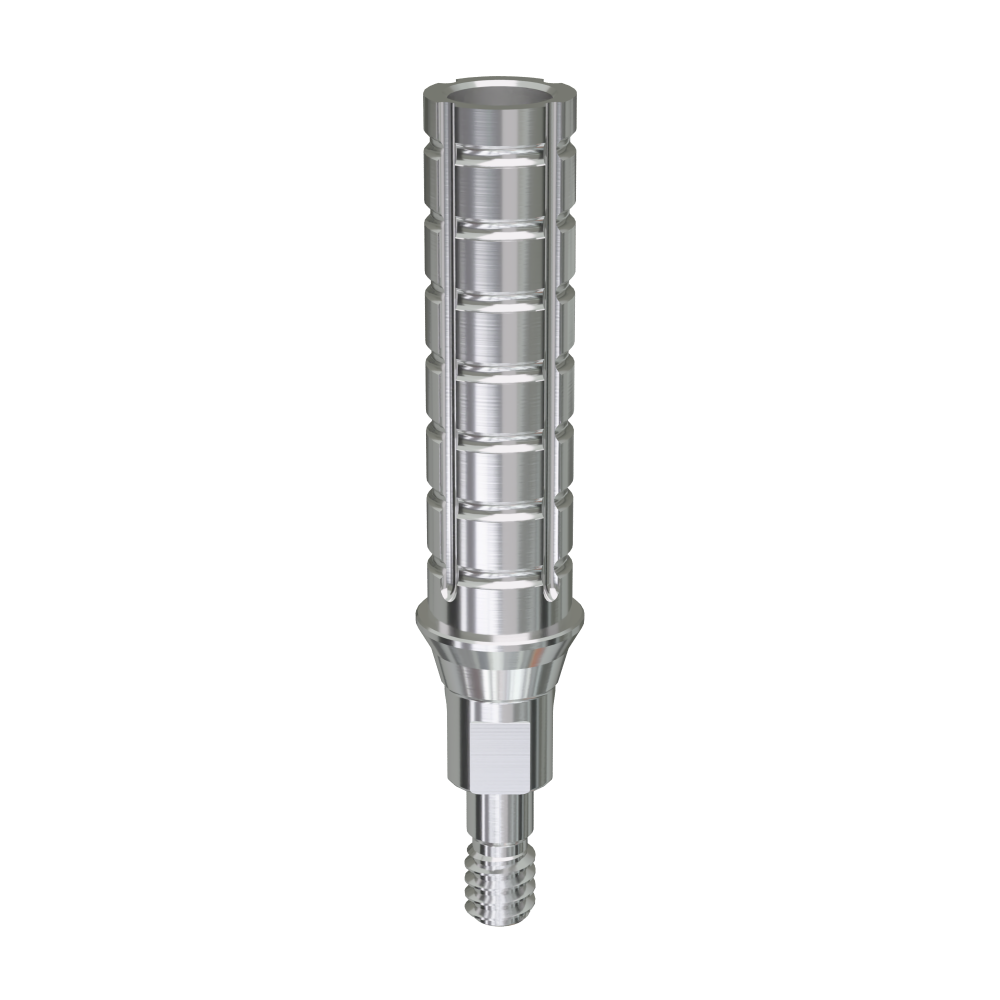

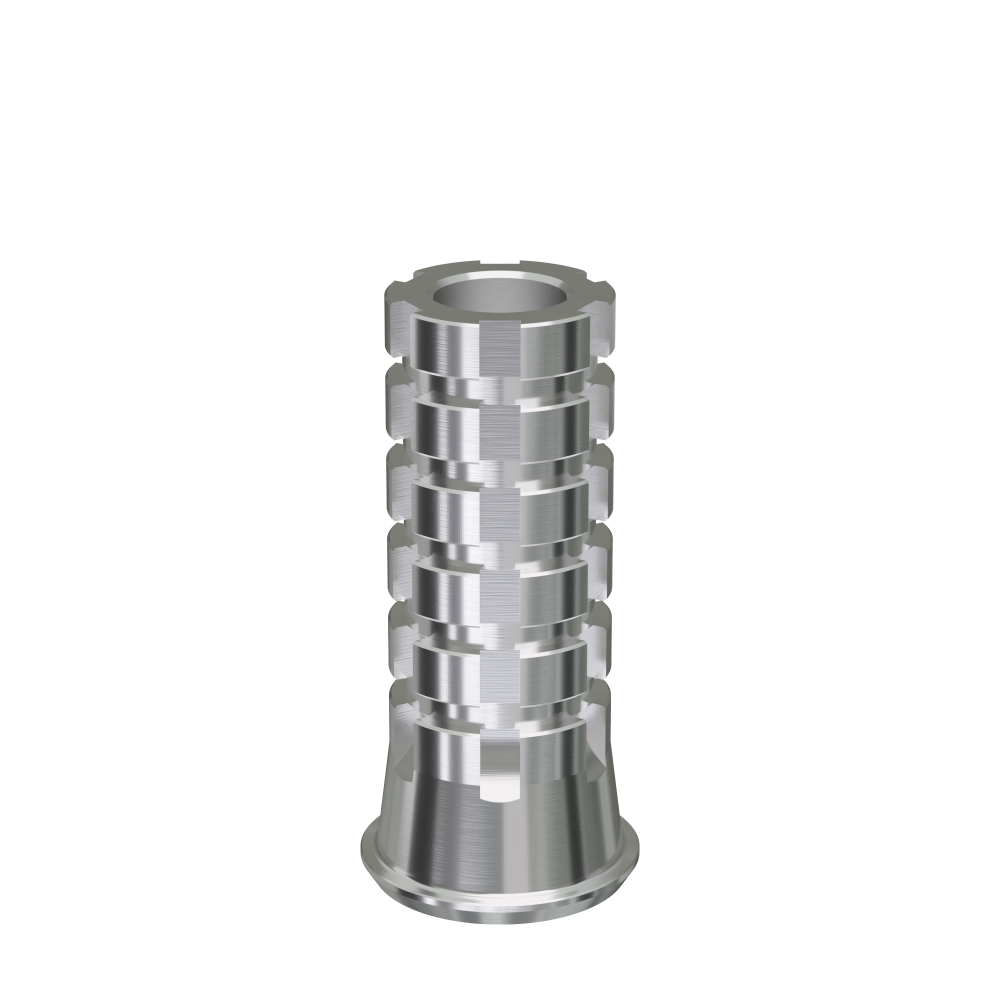

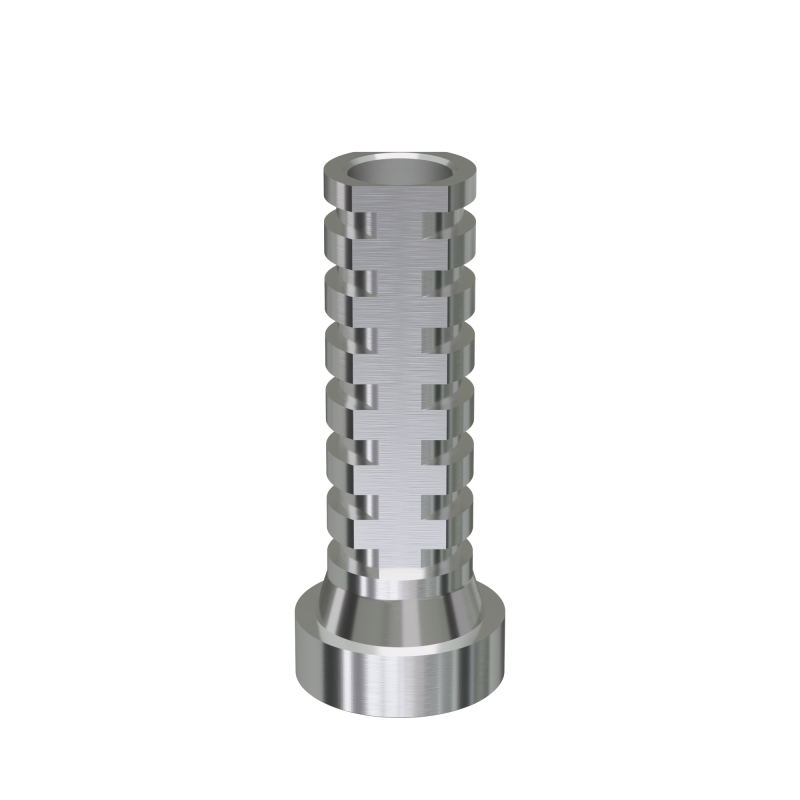

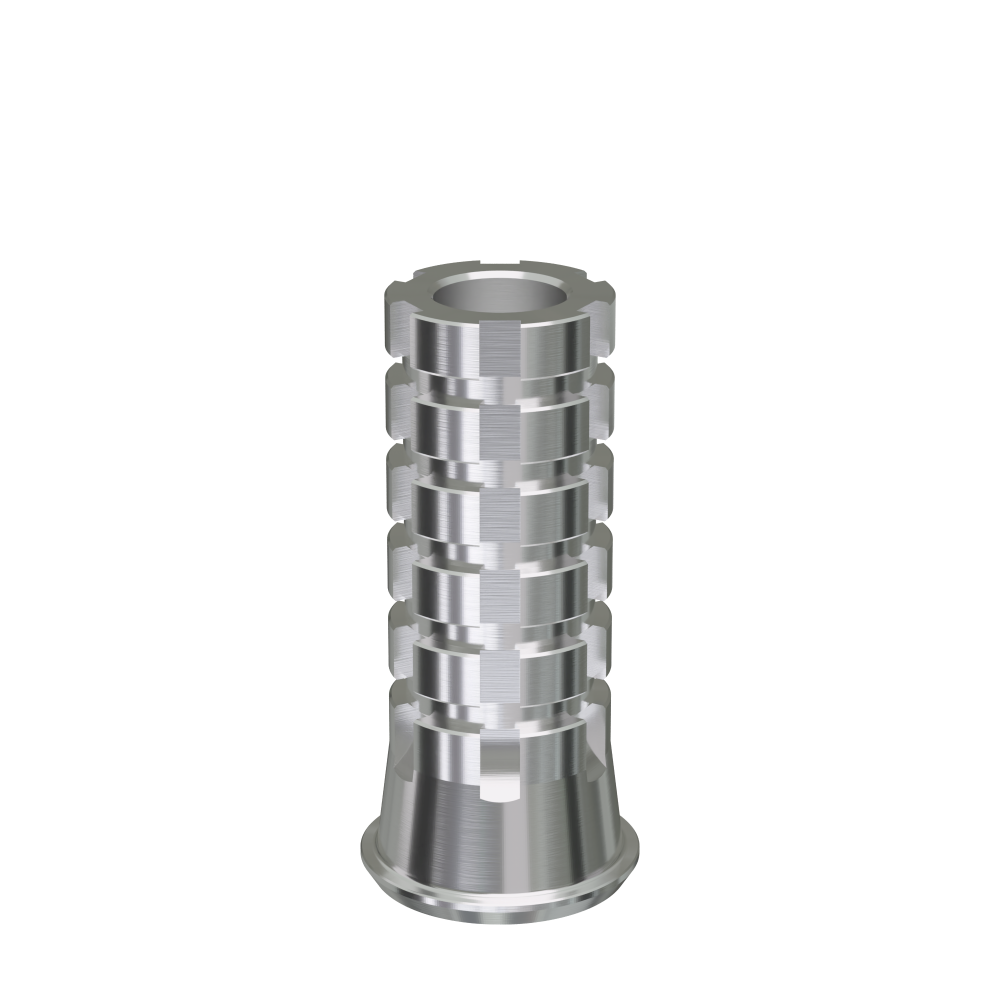

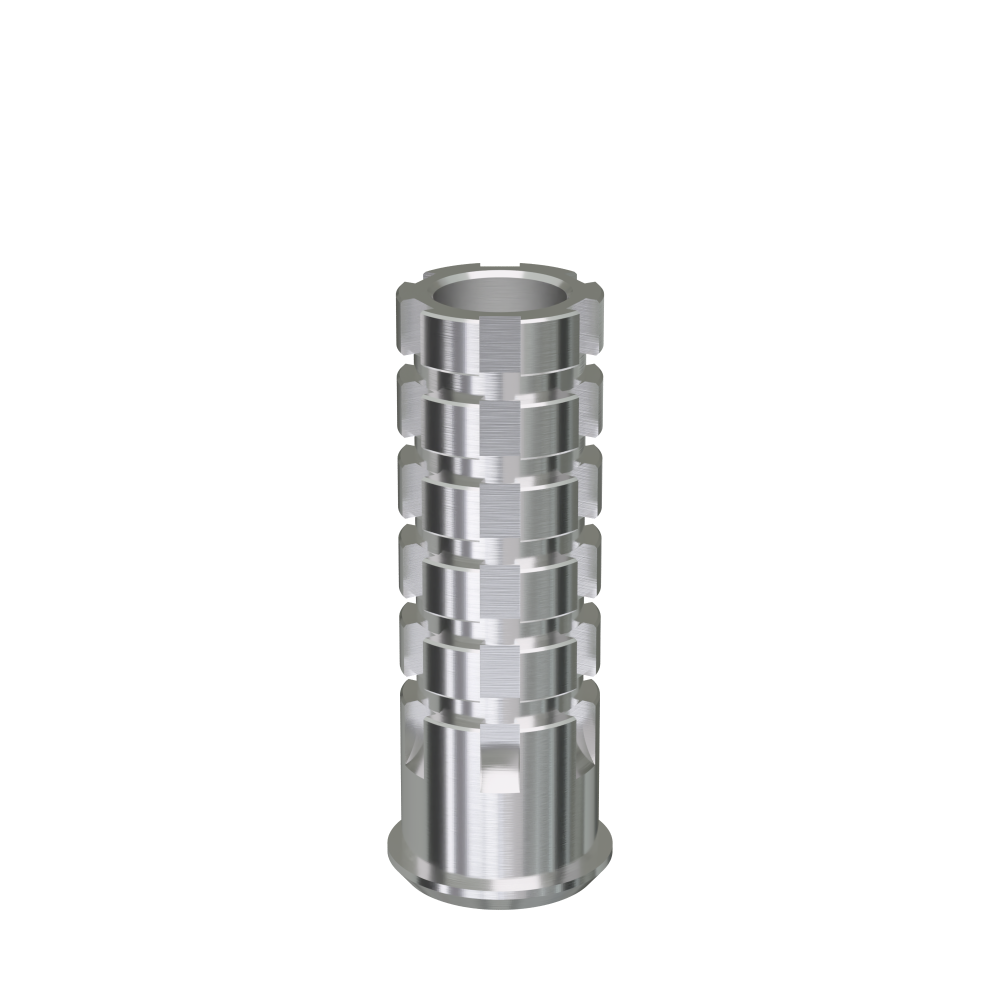

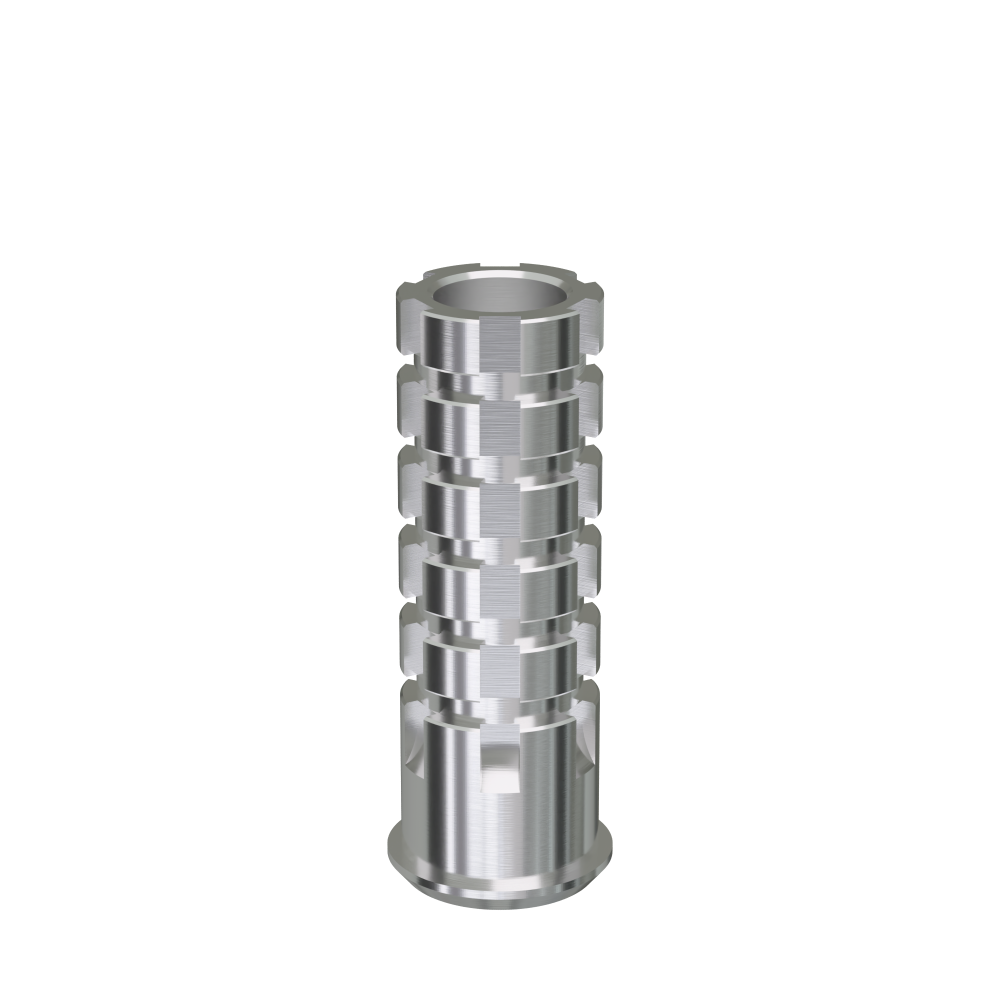

KT trilink dental Titanium Base is a prefabricated titanium abutment base for implant prosthetic restorations. It can be used with scan bodies, veneering plastic bases, composite resin bases, or custom abutments. Precision-machined from medical-grade 4 titanium (Ti-6Al-4V ), available in multiple emergence heights and interface types. Every unit is 100% inspected by a vision measurement system to ensure an interface tolerance of ±0.005 mm, guaranteeing passive fit with scan bodies or restorations.
Multiple interface options
Hexagon / Tri‑lobe / Conical / Cross‑Lock – compatible with leading implant systems
Various emergence heights
1.0 / 2.0 / 3.0 / 4.0 / 5.0 mm – to accommodate different soft tissue thicknesses
Digital workflow ready
Free CAD design library + scan body compatibility
100% vision measurement system inspection
Every product undergoes full dimensional inspection for precise fit
Compatible Implant Systems & Interface Models Overview
This product supports the following major implant systems and offers a variety of precision interface options, ensuring perfect compatibility with various brands:
Straumann® Bone Level® – CrossFit® Connection / Internal Hex
Anthogyr® Axiom® – Morse Taper Connection
MegaGen AnyOne® & ST Implant System – Internal Hex (AnyOne) / Internal Octagon (ST)
Nobel Biocare® – Conical Tri-Channel Connection / External Hex
Medentis® ICX – Conical Internal Hex Connection
Osstem® – Internal Hex (TS)
NEO – Internal Hex
BB – Internal Hex / External Hex
DIO – Internal Hex / Conical Connection
ITI (Straumann®) – CrossFit® Connection / Internal Hex
Product Specifications
Product Name |
Titanium Base |
Brand |
KT trilink dental |
Material |
Medical Grade 4 Titanium (Ti-6Al-4V ), ASTM F136 compliant |
Emergence Height (GH) |
1.0mm / 1.5mm / 2.0mm / 2.5mm / 3.0mm / 4.0mm / 5.0mm |
Base Outer Diameter |
Ø4.0mm / Ø4.5mm / Ø5.0mm (varies by model) |
Interface Type |
Hexagon / Tri‑lobe / Conical / Cross‑Lock and others |
Compatible Implant Systems |
Straumann®, Nobel Biocare®, Dentsply Sirona®, Zimmer®, Osstem®, MegaGen®, Dentium®, Hiossen®, etc. |
Screw Retention |
Pre‑formed central screw channel; includes titanium alloy central screw (torque 30 N·cm) |
Place of Origin |
Guangdong, China |
Sales Unit |
Individually packaged, includes one central screw |
Warranty |
Lifetime warranty (material or manufacturing defects) |
Inspection Method |
100% vision measurement system inspection; interface tolerance ±0.005 mm; inspection report provided per batch |
OEM/ODM Support |
Yes; non‑standard emergence heights and interfaces customizable |
Digital Workflow Integration
KT trilink dental Titanium Base fully supports digital restoration workflows, from intraoral scanning to CAD/CAM milling, with seamless integration.
Free CAD Design Library
Provides STEP/STL files for all titanium base models, directly importable into design software such as Exocad, 3Shape, DentalWings, etc. Supports parametric adjustments, accelerating scan body matching and crown/bridge design.
Download design library(插入链接连接到下载区域）
Scan Body Compatibility
The titanium base interface is fully compatible with mainstream scan bodies. When used with our scan bodies (sold separately), high‑precision intraoral scanning is achieved. Open interface parameters support third‑party scan body adaptation.
CAM Post‑Processing Adaptation
Open toolpath templates are provided, compatible with hyperDENT®, millbox®, iCAM V5®, and mainstream CNC machines, reducing programming time and lowering machining costs.
Open Interface Data
Detailed 2D drawings of the titanium base interface are available upon request, facilitating integration into your existing digital workflow or third‑party design library.
Compatible with leading intraoral scanners (3Shape TRIOS, iTero, Medit, etc.) for accurate digital impressions.
Simple Clinical Workflow
Select the appropriate base – Choose based on implant interface and emergence height
Seat and torque – Hand seat, torque to 30 N·cm
Fabricate the restoration – Build up with resin / indirect composite, or scan and mill crown/bridge
Deliver intraorally – Verify passive fit, final torque and cement/screw retain
※ The titanium base can be used directly for indirect composite, CAD/CAM milling, or as a connection base for scan bodies.
Quality Control & After‑Sales Service
100% Vision Measurement System Inspection
Every titanium base is inspected by a high‑precision vision measurement system. Interface tolerance: ±0.005 mm, ensuring passive fit with implants and scan bodies. Inspection report provided per batch.
Lifetime Warranty
Any issue caused by material or manufacturing defects – free replacement for life.
7‑Day Return & Exchange
For standard products, if size discrepancy or interface defect is found within 7 days of receipt, unconditional return or exchange.
User Testimonials
“Excellent titanium base interface accuracy – no wobble when paired with scan bodies. The vision inspection report is very professional.”
– A digital center in Beijing
“The digital design library is extremely practical. Direct import into 3Shape saved significant modeling time.”
– A dental lab in Guangzhou
Free titanium base sample (includes central screw) and design library access
Exclusive for dental labs/clinics
Clinical Case Gallery
The following are clinical applications of KT trilink dental Titanium Base in implant restorations, demonstrating digital workflow, veneering bases, scan body integration, and more.
Digital scan body integration
Paired with a scan body for intraoral scanning; data directly imported into CAD software for efficient design.
Custom abutment with veneering base
Resin built up on the titanium base, digitally designed emergence profile – low cost with high accuracy.
One‑piece CAD/CAM crown
Titanium base as the foundation, with a zirconia crown milled on top – screw‑retained one‑piece crown.
Multi‑unit bridge support
Multiple titanium bases combined, supporting a long‑span veneering bridge – lightweight with reliable strength.
Soft tissue emergence in aesthetic zone
High‑emergence titanium base selected, used with a temporary crown to shape gingival emergence – natural and aesthetic final result.
Angled abutment + titanium base combination
Used with an angled abutment, with the titanium base as an intermediary connection – simplifying angled restoration procedures.
FAQ
Q: Can the titanium base be used for final restorations?
A: Yes. The titanium base is a component of permanent restorations. It can be built up with resin / indirect composite or bonded to a zirconia crown as a screw‑retained final prosthesis.
Q: What is the difference between a titanium base and a custom abutment?
A: The titanium base is a prefabricated universal base that requires additional processing (build‑up, ceramic layering, or milling). A custom abutment is a one‑piece abutment that already incorporates the emergence profile and interface. The titanium base offers greater flexibility, lower cost, and better integration with digital workflows.
Q: How do you guarantee interface accuracy?
A: Every titanium base undergoes 100% inspection by a vision measurement system with an interface tolerance of ±0.005 mm, ensuring precise fit with implants and scan bodies.
Q: Do you provide CAD design files?
A: Yes. We provide STEP/STL files for all titanium base models, available for free download, compatible with mainstream design software such as Exocad and 3Shape.
Q: Which scan bodies are compatible with the titanium base?
A: Our titanium base interface parameters are compatible with mainstream scan bodies. Our matching scan bodies (sold separately) can also be used. Interface drawings are available for verification of compatibility.
Q: Do you support OEM customization? What is the minimum order quantity?
A: Yes. Non‑standard emergence heights and special interfaces can be customized. The typical MOQ is 50–100 pieces. Please contact our sales team for details.
Q: How can I get a free sample and access to the design library?
A: Please complete the form below. We will contact you to confirm the information, send a sample, and provide a download link to the design library.
