Are you confident your dental implant components ensure lasting success? Many clinics overlook how vital each part is. Understanding these components improves outcomes and patient satisfaction. In this post, you’ll learn about core implant parts, their roles, and how they impact clinical results and longevity.
Table of Contents
Understanding core dental implant components is essential for clinics and labs aiming for successful treatments. These components work together to restore function and aesthetics while ensuring long-term stability.
The implant fixture, often called the implant post or body, anchors directly into the jawbone. It acts as an artificial tooth root, providing the foundation for the entire implant system.
Materials: Most fixtures are made from titanium or titanium alloys due to their excellent biocompatibility and strength. Zirconia fixtures offer a metal-free alternative for patients with metal sensitivities or esthetic demands.
Design: The fixture’s shape and surface texture influence primary stability and osseointegration. Common designs include tapered or cylindrical bodies with threaded surfaces to enhance bone contact and stability.
Surface Treatments: Roughened or treated surfaces (e.g., sandblasting, acid etching) promote faster and stronger bone integration.
Abutments connect the implant fixture to the prosthetic restoration. They extend above the gumline, supporting the crown, bridge, or denture.
Types:
Prefabricated abutments: Standard shapes, suitable for many cases.
Custom abutments: Tailored for optimal fit and esthetics, especially in challenging anatomy.

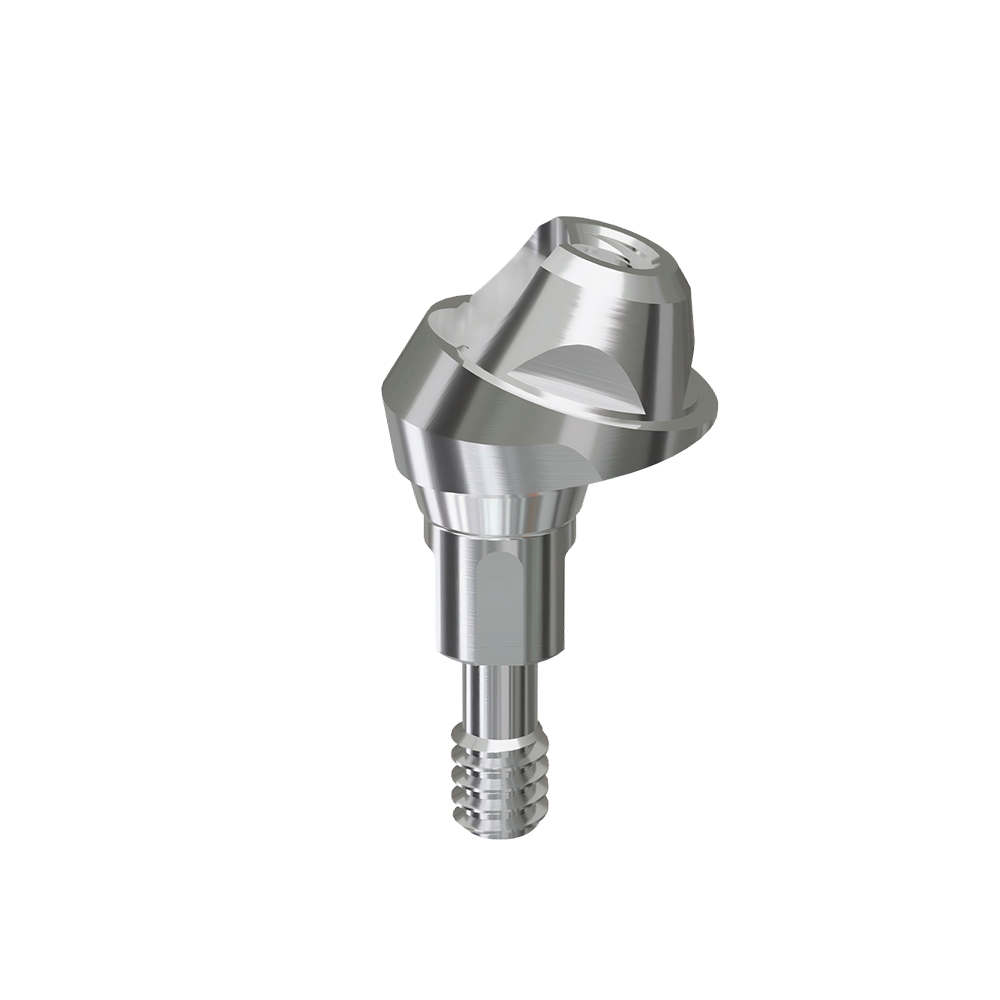

Angled abutments: Adjust implant angulation to improve prosthetic alignment.
Functions: They transfer chewing forces from the restoration to the implant and help maintain soft tissue health by shaping the emergence profile.
Connection Types: Internal hexagon or conical connections impact stability and bacterial sealing (covered in detail in later sections).
These are the visible parts replacing missing teeth, designed to restore function and appearance.
Crowns: Single-tooth restorations made from porcelain, zirconia, or metal-ceramic materials.
Bridges: Multiple connected crowns replacing several adjacent teeth.
Dentures: Removable or fixed prostheses supported by implants, including overdentures or full-arch restorations.
Retention Methods: Screw-retained or cement-retained options depend on clinical preference and case specifics.
Accessories complete the implant system, ensuring proper healing, precise prosthetic fabrication, and secure fixation.
Fixation Screws: Specialized screws maintain preload between components, preventing loosening.
Healing Caps: Temporary covers protect the implant site during healing and shape soft tissues for optimal emergence profiles.
Transfers and Analogs: Tools used during impression-taking and model fabrication to replicate implant position and orientation accurately in the lab.
Dental implant systems include more than just the fixture, abutment, and restoration. Additional components ensure smooth treatment phases, precise prosthetics, and long-term success. Clinics and labs must understand these elements to optimize outcomes.
Healing caps and cover screws protect the implant site during soft tissue healing. They shape the gum tissue, creating an ideal emergence profile for the final restoration. Choosing the correct collar height matching tissue thickness minimizes bone remodeling and enhances esthetics.
Provisional components serve temporary restorations during healing. They help verify occlusion and hygiene access without stressing the implant. These parts allow clinicians to monitor tissue response and adjust treatment plans before definitive prosthetics.
Accurate impressions are vital for prosthetic fit. Impression transfers capture the implant’s exact 3D position and orientation in the mouth. Model analogs replicate the implant connection in the laboratory cast or 3D printed model.
High-precision transfers and analogs reduce marginal gaps and misfits. They ensure the lab fabricates restorations that seat perfectly, avoiding costly remakes and chairside adjustments.
Multi-unit abutments create a leveled, screw-retained platform for full-arch or cross-arch prosthetics. They provide consistent cuff heights and angulations, which improve prosthetic alignment and access.
These abutments simplify maintenance and enhance passivity, reducing stress on screws and implants. Their use is critical in complex restorations requiring multiple implants supporting bridges or overdentures.
Scan bodies translate the intraoral implant position into digital CAD coordinates. They enable accurate virtual design of custom abutments and restorations.
CAD/CAM Ti-bases provide a stable interface between the digital design and the implant or abutment. Using manufacturer-specific libraries ensures precise rotational indexing and consistent emergence profiles.
Digital tools streamline workflows, reduce errors, and improve prosthetic precision, benefiting both clinicians and dental labs.
Proper torque application is essential for implant stability and screw preload. Specialized drivers, torque wrenches, and surgical tools help clinicians achieve manufacturer-recommended torque values.
Controlled torque prevents screw loosening or over-tightening, which can cause component failure. Using calibrated instruments minimizes complications and extends the life of the implant system.
Understanding materials and surface treatments is key to choosing dental implant components that last and perform well. The right materials boost strength, biocompatibility, and integration with bone and soft tissue. Surface science helps implants bond faster and resist bacteria and wear.
Titanium is the gold standard for implant fixtures. It is strong, lightweight, and highly biocompatible, meaning the body accepts it well. Pure titanium (commercially pure, CP) offers excellent corrosion resistance due to a natural oxide layer forming on its surface. This layer also encourages bone cells to attach and grow, aiding osseointegration.
Titanium alloys, such as Ti-6Al-4V (Grade 5), add aluminum and vanadium for extra strength and fatigue resistance. These alloys allow slimmer implant designs without sacrificing durability. They are especially useful in narrow-diameter implants or areas exposed to high chewing forces.
The machining quality of titanium parts affects fit and stability. Precise threads and smooth abutment cones reduce micromovement and maintain screw preload, which is vital for long-term success.
Zirconia implants offer a metal-free alternative. Made from a ceramic material, they appeal to patients with metal sensitivities or high esthetic demands. Zirconia is tooth-colored, reducing the risk of dark shadows showing through gums, especially in the front teeth.
Typically, zirconia implants are one-piece designs, meaning the implant and abutment are fused. This limits prosthetic flexibility but reduces microgaps where bacteria could accumulate. Long-term clinical data is still growing, so zirconia is often chosen for select cases, such as single-tooth replacements in visible areas.
Surface modifications improve bone bonding and shorten healing times. Common treatments include:
Sandblasting and Acid Etching: Roughens the surface to increase contact area for bone cells.
Anodizing: Alters the oxide layer thickness and surface energy, sometimes adding color codes.
Calcium Phosphate Coatings: Mimic natural bone minerals, encouraging faster integration.
These treatments create a micro-rough texture that promotes bone growth and improves primary stability. Hydrophilic (water-attracting) surfaces can further enhance early healing by attracting proteins and cells needed for bone formation.
Beyond osseointegration, surfaces must resist bacterial colonization and wear, especially on transmucosal parts like abutments and multi-unit connectors. Titanium nitride (TiN) coatings, applied via physical vapor deposition (PVD), offer several benefits:
Increased Hardness and Wear Resistance: Protects components from scratches and deformation.
Reduced Plaque Adhesion: Creates a smoother, less sticky surface, lowering inflammation risks.
Stable Biocompatibility: Maintains tissue health and helps preserve torque values over time.
Esthetic Advantage: TiN’s warm gold color can improve appearance under thin gums.
Clinics using TiN-coated abutments report fewer maintenance visits and better soft tissue outcomes, especially in full-arch or high-load restorations.
The implant–abutment interface is where the implant fixture meets the abutment. This junction is crucial because it affects mechanical stability, load transfer, and the seal against bacteria. Choosing the right connection type can make a big difference in clinical outcomes and implant longevity.
The internal hexagon is a classic design featuring a six-sided recess inside the implant. It’s popular because:
Pros:
Easy to use and widely compatible with many abutments.
Cost-effective manufacturing.
Simplifies prosthetic procedures due to standardized parts.
Cons:
Flat-on-flat contact can allow micromovement under load.
Stress tends to concentrate at the crestal bone, risking bone loss.
More prone to screw loosening due to less frictional stability.
Microgaps at the interface can harbor bacteria, increasing peri-implantitis risk.
Despite these drawbacks, internal hex connections still offer reliable survival rates, especially in straightforward cases.
The conical or Morse taper connection uses a tapered, wedged fit to lock the abutment tightly inside the implant.
Advantages:
Creates a friction-fit that minimizes micromovement.
Distributes occlusal forces deeper into the implant body, reducing crestal bone stress.
Provides a tighter bacterial seal, lowering infection risk.
Enhances screw preload retention, reducing loosening incidents.
Often results in better long-term bone preservation and fewer prosthetic complications.
This connection type suits demanding cases, such as full-arch restorations or high-load posterior implants.
How the implant and abutment connect directly influences:
Load Distribution: Flat interfaces focus stress near the bone crest, potentially causing resorption. Tapered connections spread forces more evenly, protecting bone.
Bacterial Seal: Microgaps can lead to bacterial infiltration and inflammation. Conical designs reduce microleakage, preserving peri-implant tissue health.
Mechanical Stability: Reduced micromovement means less screw loosening and fewer fractures, improving prosthetic reliability.
Selecting an interface depends on patient needs, case complexity, and clinician preference.
For simple single-tooth cases, internal hexagon connections may suffice.
For complex restorations needing enhanced stability and bone preservation, conical connections are preferred.
Consider the prosthetic ecosystem: availability of compatible abutments, digital components, and accessories matters.
Evaluate manufacturer data on torque values, fatigue resistance, and clinical outcomes.
Clinicians should weigh these factors to optimize implant longevity, reduce complications, and improve patient satisfaction.
Successful dental implants rely on a delicate balance between biological integration and mechanical strength. Both aspects must work together to ensure implants last long and function well.
Osseointegration means the bone grows tightly around the implant, anchoring it firmly. Achieving this depends on several factors:
Implant Shape and Size: Tapered implants often provide better initial stability than cylindrical ones. Larger diameters increase surface contact with bone.
Surface Texture: Rough or treated surfaces promote faster bone growth. Techniques like sandblasting and acid etching create micro-roughness that bone cells prefer.
Bone Quality: Dense bone offers better support. Softer bone may require special implant designs or surface treatments.
Surgical Technique: Precise placement and minimal trauma help bone heal around the implant quickly and firmly.
Primary stability is critical immediately after placement. It reduces micromovement, which can interfere with bone healing.
Once the implant is in function, it must handle chewing forces without damaging bone or components.
Load Distribution: Implants should spread forces evenly. Designs like conical connections help transfer load deeper into bone, reducing stress on the crestal bone.
Implant Diameter and Length: Wider and longer implants distribute load over a larger bone area.
Connection Type: Stable implant–abutment interfaces prevent micromovement and screw loosening, preserving mechanical integrity.
Prosthetic Design: Proper occlusion and prosthetic fit reduce off-axis loading, which can cause fractures or bone loss.
Poor load management leads to bone resorption, component loosening, or fractures.
Healthy gums around implants protect bone and prevent infection.
Emergence Profile: Abutments and healing caps shape soft tissue for a natural contour.
Surface Coatings: Materials like titanium nitride reduce plaque buildup and inflammation.
Tissue Thickness: Matching collar heights to tissue depth minimizes bone remodeling.
Hygiene Access: Design should allow easy cleaning to maintain tissue health.
Stable soft tissue acts as a barrier against bacteria and supports esthetics.
Long-term success means implants remain stable biologically and mechanically.
Biological Success: Strong osseointegration plus healthy, stable soft tissue.
Mechanical Success: Resistance to micromovement, screw loosening, and material fatigue.
System Integration: All components must fit and function as a cohesive unit.
Choosing implant systems designed to optimize both biology and mechanics improves patient outcomes and reduces complications.
Dental implant systems today must bridge the clinical and laboratory worlds seamlessly. This integration ensures precise prosthetic outcomes and efficient workflows in both traditional and digital environments. Clinics and labs benefit greatly when implant components support smooth transitions from impression-taking to final restoration design.
Traditional workflows rely on impression transfers and model analogs to replicate the exact position and orientation of implants in the patient’s mouth.
Impression Transfers: These components attach to the implant or abutment during impression-taking. They capture the 3D spatial relationships needed for lab models.
Model Analogs: These replicas fit into the dental stone or 3D-printed model, mimicking the implant’s connection and position. This allows technicians to work on prosthetics as if they were seated in the mouth.
Precision Matters: High-quality transfers and analogs reduce errors like marginal gaps or misfits. This precision minimizes remakes and chairside adjustments, saving time and costs.
Clinics should verify that transfers and analogs are compatible with their implant system and that labs have experience working with these components.
Digital workflows have revolutionized implant prosthetics by enabling virtual design and manufacturing.

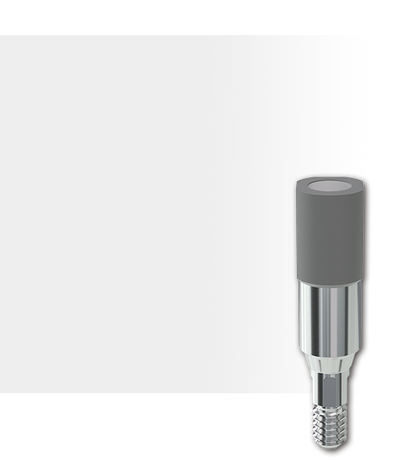

Scan Bodies: These attach to the implant or abutment intraorally during digital scanning. They translate the implant’s exact position and orientation into CAD software.
CAD/CAM Ti-Bases: Titanium bases designed for computer-aided manufacturing provide a stable interface between the digital design and the implant or abutment. They preserve rotational indexing and emergence profiles.
Manufacturer Libraries: Using brand-specific digital libraries ensures that virtual components match physical parts perfectly, preventing rotational play or misalignment.
Benefits: Digital capture reduces impression errors, streamlines communication between clinic and lab, and allows for custom abutment and crown design with high precision.
Digital integration requires compatible hardware and software at both the clinic and lab, plus training to maximize accuracy and efficiency.

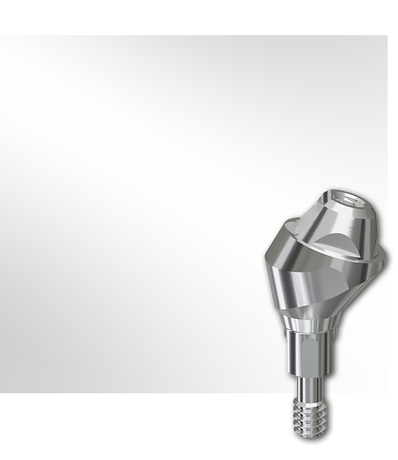

Multi-unit abutments play a key role in full-arch and cross-arch restorations.
Function: They create a leveled, screw-retained platform for prosthetics, improving fit and passivity.
Analog Use: In traditional workflows, multi-unit abutments are transferred and modeled using analog components to ensure accurate prosthetic fabrication.
Digital Use: Scan bodies and CAD libraries account for multi-unit abutments, allowing precise digital design of frameworks and restorations.
Versatility: These abutments support retrievability and maintenance, critical for complex rehabilitations.
Selecting a system that offers multi-unit abutments compatible with both analog and digital workflows enhances clinical flexibility.
Many labs and clinics combine analog and digital techniques to optimize outcomes.
Casting Abutments: Allow conventional wax-ups and casting for unique emergence profiles or cost-effective cases.
Digital Design: Enables precise prosthetic fabrication, especially for complex or esthetic-demanding restorations.
Workflow Flexibility: Hybrid approaches let clinicians adapt to patient needs, lab capabilities, and case complexity without sacrificing accuracy.
Reduced Errors: Combining the strengths of both workflows minimizes remakes and improves patient satisfaction.
Systems offering comprehensive accessory kits for both analog and digital processes provide the best support for hybrid workflows.
Dental implant components must meet strict regulatory standards to ensure safety, reliability, and clinical success. Clinics and labs rely on trustworthy certification and quality assurance to protect patients and maintain professional standards.
Implant systems undergo rigorous evaluation under international and regional regulations:
ISO (International Organization for Standardization): Sets quality management and biocompatibility standards for medical devices, including dental implants. ISO 13485 certification confirms manufacturers follow strict production and quality control processes.
FDA (Food and Drug Administration, USA): Grants clearance or approval based on safety and efficacy data. FDA-approved implants meet stringent U.S. regulations, reassuring clinicians of their clinical performance.
CE Marking (European Union): Indicates compliance with EU medical device directives. CE-marked implants meet essential health, safety, and environmental requirements for sale in Europe.
These certifications demonstrate that implant components have passed standardized testing and manufacturing audits, reducing risks of failure or adverse reactions.
Maintaining sterility from factory to surgery is critical:
Sterilization Methods: Gamma irradiation, ethylene oxide gas, or other validated processes ensure implants and accessories are free of microbes.
Packaging Integrity: Sealed, tamper-evident packaging protects components during transport and storage, preserving sterility until use.
Lot Numbers and Traceability: Each implant and accessory carries a unique lot number, allowing full traceability from production batch to patient record. This enables quick responses in case of recalls or adverse events.
Proper sterility and traceability protocols safeguard patient health and support regulatory compliance.
Manufacturers conduct extensive testing to verify implant quality:
Mechanical Testing: Tensile strength, fatigue resistance, and torque retention tests confirm components withstand functional loads without failure.
Surface Characterization: Roughness, coating adhesion, and chemical composition analyses ensure surface treatments promote osseointegration and resist wear or corrosion.
Biocompatibility Assessments: Cytotoxicity, sensitization, and irritation tests verify materials do not cause harmful biological reactions.
Sterilization Validation: Processes are validated to consistently achieve sterility assurance levels required for surgical implants.
These tests are documented in technical files submitted for regulatory review and ongoing quality control.
For clinics, choosing certified implant components guarantees:
Patient safety through proven material biocompatibility and sterility.
Confidence in mechanical performance and long-term stability.
Compliance with legal and professional standards.
Reduced liability and risk of complications.
Distributors benefit by:
Offering products meeting global market requirements.
Building trust with clinicians through certified quality.
Facilitating smooth regulatory audits and import/export processes.
Ultimately, certification and quality assurance form the foundation of a reliable dental implant system.
Choosing the right dental implant components is crucial for clinics and labs aiming for long-term success. A thorough assessment ensures compatibility, reliability, and clinical efficiency. Below are key factors to consider before making a purchase.
Start by verifying the materials used in the implant components. Common materials include:
Grade 4 Commercially Pure Titanium: Known for excellent biocompatibility and corrosion resistance.
Grade 5 Titanium Alloy (Ti-6Al-4V): Offers higher strength and fatigue resistance, ideal for narrow or high-load implants.
Zirconia: A ceramic alternative for patients with metal sensitivities or esthetic needs.
Request detailed documentation on surface treatments such as sandblasting, acid etching (SLA), anodizing, or coatings like titanium nitride (TiN). These treatments influence osseointegration speed, bacterial resistance, and soft tissue health. Look for test results on surface roughness, coating adhesion, and hydrophilicity to confirm quality.
The implant–abutment connection is a key factor in stability and bacterial sealing. Confirm the system offers:
Connection Type: Internal hexagon or conical (Morse taper) connections, depending on clinical preference.
Prosthetic Components: Availability of various abutments (straight, angled, custom), healing caps, impression transfers, analogs, and multi-unit abutments for full-arch cases.
Compatibility: All parts should fit seamlessly within the same system to avoid complications.
A complete prosthetic ecosystem ensures flexibility in treatment planning and smoother workflows.
Digital workflows are essential in modern implantology. Verify:
Scan Bodies: High-precision components that translate implant position into digital models.
CAD/CAM Ti-Bases: Stable interfaces for digital prosthetic design.
Manufacturer’s Digital Libraries: Ensure these support your CAD software and maintain rotational accuracy.
Systems lacking robust digital integration may cause remakes, delays, and increased costs.
Ensure the system includes all necessary accessories:
Fixation screws with documented alloy composition and coatings.
Healing caps in multiple cuff heights.
Impression transfers and model analogs.
Torque control devices calibrated to manufacturer specifications.
Review mechanical data such as recommended torque values, fatigue resistance, and preload retention. This information helps prevent screw loosening and component failure.
Check for up-to-date certifications:
ISO 13485: Quality management system for medical devices.
FDA Clearance: For US market approval.
CE Marking: Compliance with European regulations.
Confirm sterilization methods and packaging integrity. Lot numbers and traceability protocols should be clear to track components from manufacturing to patient use. Review warranty terms for implants and prosthetic parts to protect your investment.
Beyond product specs, assess supplier reliability:
Stock availability and delivery times.
Emergency replacement policies.
Clinical education and training programs.
Lab support and digital workflow assistance.
Strong supplier support reduces downtime and enhances clinical confidence.
Understanding core dental implant components is vital for clinics and labs to ensure successful treatments. A fully integrated implant system offers seamless compatibility and precise fit, enhancing clinical efficiency. This integration improves patient outcomes by promoting stability, esthetics, and long-term success. Choosing a comprehensive solution reduces complications and streamlines workflows. Ketai (Guangzhou) Medical Equipment Co., Ltd. provides advanced dental implant components that deliver reliable performance and support modern clinical and digital needs, adding significant value to implant procedures.
A: Dental implant components include the implant fixture, abutments, restorative parts, and accessories. They work together to anchor, support, and restore missing teeth with stability and aesthetics.
A: Materials like titanium and surface treatments such as sandblasting enhance bone integration, while abutment design supports soft tissue health, ensuring successful osseointegration.
A: The connection type impacts mechanical stability, load distribution, and bacterial sealing, influencing implant longevity and reducing complications.
A: Verify that abutments, screws, and restorative parts fit within the same system, and check for digital workflow support and manufacturer certifications.
A: Scan bodies and CAD/CAM Ti-bases enable precise digital impressions and prosthetic design, improving accuracy and workflow efficiency.
