Ever wonder how full arch dental implants stay stable and easy to maintain? The secret lies in the multi unit abutment (MUA). MUAs connect implants to prosthetics, ensuring durability and hygiene. In this post, you’ll learn what MUAs are, their role in implant dentistry, and why they matter for full arch restorations.
A Multi Unit Abutment (MUA) sits between the dental implant fixture embedded in the jawbone and the prosthetic restoration, such as a full arch bridge or screw-retained denture. Think of the implant stack as a layered system:
Implant fixture: The titanium screw anchored in the bone.
Multi Unit Abutment: The intermediate connector.
Prosthetic restoration: The final bridge or denture secured on top.
This placement means the prosthesis doesn’t attach directly to the implant but connects to the MUA, which acts as a platform. This design allows easy removal or replacement of the prosthesis without disturbing the implant itself, making maintenance and repairs simpler.
Conventional abutments usually support single crowns or short-span bridges and often rely on cement retention. They are typically designed for implants placed in ideal positions with parallel angulation.
MUAs, on the other hand, are specifically designed for screw-retained full arch restorations or longer bridges. Their main functions include:
Creating a unified, level prosthetic platform across multiple implants.
Correcting implant angulation with straight or angulated designs.
Elevating the prosthetic connection above the gumline for better hygiene access.
Facilitating retrievability of the prosthesis without disturbing the implant interface.
These features make MUAs indispensable in complex cases like All-on-4 treatments, where implants are often tilted and need a common restorative platform.
The MUA screws onto the implant fixture using a precise connection system unique to the implant brand and model. On top of the MUA, the prosthetic framework is secured using occlusal screws that pass through the restoration and engage the MUA.
This two-stage connection provides several advantages:
Angulation correction: Angulated MUAs adjust implant tilt, aligning screw channels for optimal prosthetic fit and esthetics.
Platform standardization: MUAs create a co-planar surface, simplifying framework design and ensuring passive fit.
Soft tissue management: By elevating the prosthetic platform, MUAs help maintain healthy tissue and improve cleansability.
Retrievability: If repairs or adjustments are needed, the prosthesis can be removed without disturbing the implant-MUA interface, preserving osseointegration.
In summary, MUAs serve as the critical link transforming multiple implants of varying angles and depths into a uniform, functional base for durable, hygienic full arch restorations.

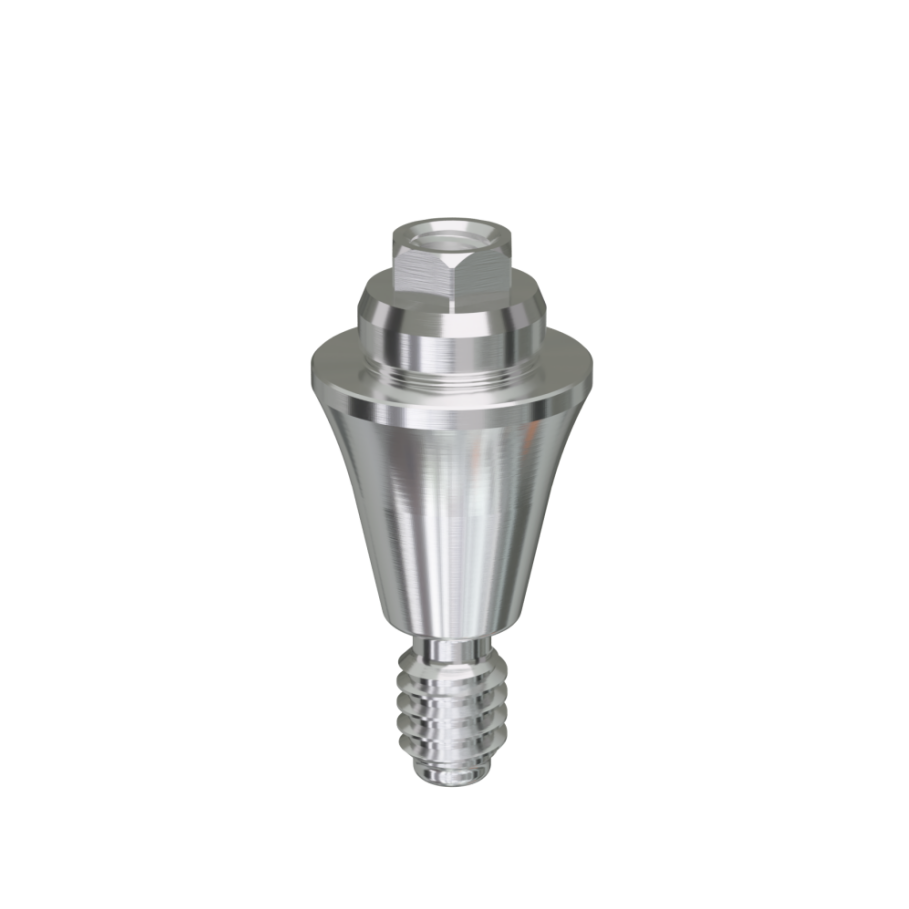

Straight Multi Unit Abutments (MUAs) have a 0° angulation, meaning they extend the implant connection vertically without changing its direction. They act mainly as height extenders, raising the prosthetic platform above the gumline. Straight MUAs work best when implants are placed parallel to each other and in ideal positions, allowing the prosthetic screw channels to emerge in accessible, functional locations.
Applications of straight MUAs include:
Cases where implants are aligned well and need only vertical extension.
Short-span screw retained bridges with parallel implants.
Situations where soft tissue thickness requires raising the prosthetic platform for hygiene and esthetics.
Full arch cases where implant angulation is minimal.
Using straight MUAs simplifies prosthetic design by maintaining a uniform, perpendicular connection to the implant, which helps create a co-planar platform for the prosthesis.
Angulated MUAs correct implant tilt by redirecting the prosthetic connection to a more favorable axis. They compensate for implants placed at angles due to anatomical constraints like bone availability or avoiding nerves and sinuses.
Benefits of angulated MUAs include:
Aligning screw channels to emerge in accessible, esthetic positions.
Allowing implants to be placed where bone is best, not just where prosthetics would be easiest.
Simplifying prosthetic framework design by creating a common, level platform.
Enhancing patient comfort by avoiding screw access holes in visible or functional areas like the front teeth or chewing surfaces.
Improving soft tissue management by positioning the prosthetic margin at an ideal height.
Angulated MUAs thus enable clinicians to balance surgical and restorative demands, improving long-term outcomes.
Most implant systems offer angulated MUAs in common angles such as 17°, 30°, and sometimes 45°. Choosing the right angle depends on the implant tilt and restorative needs:
Angulation | Typical Use Case |
|---|---|
17° | Mild implant tilts, posterior maxilla or mandible where slight correction suffices. |
30° | Moderate angulation, often in All-on-4 posterior implants to avoid anatomical structures. |
45° | Severe angulation cases, less common, used when implants are significantly tilted. |
Selecting the correct angulation prevents excessive prosthetic material thinning and maintains screw access in functionally acceptable locations.
When implants are angled, the screw access holes may emerge on the buccal or incisal surfaces—unfavorable for function and esthetics. Angulated MUAs redirect the prosthetic connection axis, creating a parallel, co-planar platform across all implants.
This correction allows:
A passive fit of the prosthetic framework, reducing stress on implants.
Screw channels to exit in accessible, non-visible locations.
Uniform load distribution across implants, enhancing biomechanics.
Easier prosthetic fabrication and maintenance.
By using the appropriate angulated MUA, clinicians ensure the final restoration fits precisely, functions well, and looks natural.
Multi Unit Abutments (MUAs) play a vital role across various implant restorative scenarios. Their versatility extends beyond full arch cases, making them essential tools for predictable, functional, and hygienic prosthetic outcomes.
MUAs are not just for full arch restorations; they also improve outcomes in short span screw retained bridges involving two to four implants. In these cases, implants may not be perfectly parallel due to anatomical constraints or surgical positioning. MUAs help by:
Correcting minor implant angulations to align screw channels.
Elevating the prosthetic platform above soft tissue for easier hygiene.
Providing a retrievable, screw-retained restoration avoiding cement-related complications.
Allowing consistent restorative workflows similar to full arch protocols, which benefits coordination between surgical and restorative teams.
This approach is especially beneficial for patients with limited interocclusal space or higher risk of peri-implant disease, where retrievability and cleanliness are priorities.
The All on 4 concept relies heavily on MUAs to manage implant angulation and provide a unified prosthetic platform. Typically, two anterior implants are placed axially, while two posterior implants are tilted to maximize bone engagement and avoid vital structures.
MUAs in All on 4 cases:
Correct implant angulations, creating a co-planar restorative platform.
Facilitate a passive fit of the screw retained full arch prosthesis.
Support immediate provisional restorations when primary stability allows.
Simplify prosthetic design by standardizing screw access locations.
Clinicians often standardize a limited set of MUA heights and angulations per implant system to streamline workflows and improve predictability.
For edentulous patients with well-fitting dentures, MUAs enable efficient conversion to fixed implant-supported prostheses. During surgery:
MUAs are placed on implants.
The existing denture is indexed, sectioned, and picked up on temporary cylinders attached to MUAs.
This reduces chairside time and patient discomfort.
Labs then refine or remake provisional and definitive prostheses based on MUA positions.
This technique provides a smooth transition from removable to fixed solutions while maintaining prosthetic accuracy.
MUAs elevate the prosthetic connection above the gumline, which:
Improves soft tissue health by allowing better access for cleaning.
Reduces food traps and peri-implant inflammation risk.
Keeps screw access holes in accessible, non-visible locations.
Enables easy removal of the prosthesis for maintenance or repair without disturbing the implant interface.
This retrievability is critical for long-term success, especially in full arch restorations where hygiene and prosthetic adjustments are ongoing concerns.
Multi Unit Abutments (MUAs) must match the implant connection type precisely. Implant systems vary: internal hex, conical, morse taper, and others. Using the wrong connection risks poor fit, screw loosening, or component damage. Also, platform sizes differ—narrow, regular, wide—so select MUAs that correspond exactly to the implant’s platform diameter.
Always check manufacturer specifications to confirm compatibility. When sending cases to the lab, provide detailed information about the implant system, connection type, and platform size. This helps avoid costly errors and ensures the prosthetic fits perfectly.
Cuff height refers to the vertical length of the MUA collar that sits above the implant platform and through the soft tissue. Choosing the right cuff height is crucial for tissue health, esthetics, and prosthetic fit.
Too short: The prosthetic margin may sit below the gumline, making hygiene difficult and increasing inflammation risk.
Too tall: The emergence profile may be bulky or unnatural, and screw access may be compromised.
Measure soft tissue thickness carefully using periodontal probes or digital scans. Aim to position the prosthetic connection a few millimeters above the bone crest, ensuring a stable mucosal seal. Communicate these measurements clearly to your lab so they can verify your choice.
Angulated MUAs correct implant tilt by redirecting the prosthetic axis. Common angles include 17°, 30°, and sometimes 45°. Selecting the right angulation depends on implant position and restorative needs.
Over-angulation can cause:
Thinning of prosthetic material.
Screw heads too close to the labial surface.
Complicated framework design.
Plan implant placement and MUA angulation together, using CBCT and digital wax-ups. This ensures screw channels emerge in accessible, esthetic locations and that restorative space is adequate for the prosthesis.
MUAs require specific prosthetic screws and scan bodies that match the implant system and MUA design. Using incompatible components leads to inaccurate impressions, fit issues, or screw failure.
Maintain an updated inventory of compatible screws and scan bodies for each implant system you use. When scanning, use the correct MUA-level scan bodies to capture precise positions for the lab. Clear communication with your lab about component types reduces errors and streamlines workflow.
Multi Unit Abutments (MUAs) play a crucial role in full arch implant biomechanics by creating a co-planar restorative platform. When implants are placed at different angles or depths, the prosthetic surfaces can become uneven, causing stress points. MUAs correct this by aligning the prosthetic connection points so they all sit on the same plane. This uniform platform:
Distributes occlusal forces evenly across all implants.
Reduces micro-movements that can jeopardize osseointegration.
Supports a passive fit of the prosthetic framework, minimizing strain on screws and implants.
Enables CAD/CAM frameworks to fit precisely without distortion.
This biomechanical harmony improves the longevity of the implant restoration and reduces complications caused by uneven load.
MUAs elevate the prosthetic connection above the bone crest, creating a better emergence profile for soft tissues. This positioning:
Maintains a stable mucosal seal around the abutment.
Reduces the risk of food traps and bacterial accumulation.
Makes daily hygiene easier for patients by allowing better access around abutments.
Limits inflammation and peri-implant mucositis by improving cleansability.
By choosing the correct cuff height, clinicians ensure the prosthetic margin is neither too deep nor too bulky, supporting healthy soft tissue contours and patient comfort.
A key challenge in full arch restorations is controlling where screw access holes emerge on the prosthesis. MUAs help by:
Redirecting screw channels through angulated abutments to avoid visible or functional areas like the front teeth or biting surfaces.
Ensuring screw access holes are positioned on palatal or occlusal surfaces, which are easier to conceal and clean.
Allowing prosthetic designers to optimize aesthetics without compromising function.
Facilitating retrievability by keeping screw channels accessible for maintenance or repairs.
Proper planning of MUA angulation and implant placement is essential to achieving these outcomes.
MUAs simplify the design and fabrication of full arch prosthetic frameworks by providing:
A standardized, level connection platform regardless of implant angulation or depth.
Consistent screw channel orientation, reducing complex framework geometry.
Easier verification processes using jigs and digital scans.
Improved predictability of passive fit, lowering the risk of framework misfit and screw loosening.
This simplification saves time during lab fabrication and clinical delivery, enhancing workflow efficiency and patient satisfaction.
Successful full arch implant restorations using Multi Unit Abutments (MUAs) begin long before surgery. Pre-surgical planning is critical. The dental team, including surgeons, restorative dentists, and lab technicians, must collaborate closely.
Key planning steps include:
Restorative-driven implant placement: Define tooth positions, occlusion, and vertical dimension before implant insertion. This ensures implants support the final prosthesis optimally.
Select implant positions considering restorative space and screw access: Implant angulation and depth must accommodate MUAs and prosthetic components.
Standardize MUA choices: Decide on preferred cuff heights and angulations for your implant system. This reduces decision fatigue during surgery and streamlines lab communication.
Share detailed plans with the lab: Provide CBCT scans, digital wax-ups, and MUA selections. Labs can prepare provisional frameworks, surgical guides, or parts lists in advance.
This coordination minimizes surprises, shortens chair time, and improves prosthetic fit.
After implant placement and MUA installation, capturing accurate impressions or scans is essential. Two main approaches exist:
Implant-level impression/scan: Captures the implant platform position. Useful when MUA selection is uncertain or if lab needs flexibility to plan MUAs digitally. Requires lab to virtually add MUAs in design software.
MUA-level impression/scan: Records the exact position and orientation of MUAs already placed. Provides a standardized prosthetic platform for lab fabrication. Simplifies verification and framework design.
Digital workflows often use scan bodies specific to the implant and MUA system. Consistency in technique and component use across the team reduces errors and remakes.
MUAs enable smooth transitions from provisional to definitive restorations:
Day of surgery: Place implants and MUAs, then convert existing dentures or fabricate immediate screw-retained provisionals on temporary cylinders attached to MUAs.
Healing phase: Monitor tissue health and adjust provisional prosthesis for occlusion and hygiene.
Definitive phase: Take a precise MUA-level impression or scan, fabricate a verification jig, and design the final prosthetic framework and bridge.
This staged workflow ensures prosthetic accuracy, patient comfort, and long-term success.
Limit MUA variants: Use a small, documented set of cuff heights and angulations per implant system to reduce complexity.
Communicate clearly with your lab: Include implant system, platform size, MUA details, and soft tissue measurements in prescriptions.
Use digital planning tools: CBCT, digital wax-ups, and simulation software help visualize implant positions relative to prosthetic needs.
Standardize scanning protocols: Choose implant-level or MUA-level scanning consistently within your team.
Verify prosthetic fit early: Use verification jigs to confirm framework accuracy before finalizing restorations.
Plan screw channel emergence carefully: Avoid esthetic or functional compromises by selecting appropriate MUA angulation and implant placement.
Following these tips helps avoid common pitfalls and keeps full arch workflows efficient and predictable.
One common challenge in full arch restorations is selecting inconsistent cuff heights for MUAs across different implants. When cuff heights vary widely, the prosthetic platform becomes uneven, creating a “rollercoaster” effect. This unevenness complicates framework design and can lead to poor prosthetic fit. It also makes hygiene difficult for patients, as cleaning around irregular margins is harder, increasing the risk of inflammation and peri-implant disease.
To avoid this, aim for consistent cuff heights on adjacent implants whenever possible. If soft tissue thickness varies, consider minor adjustments to tissue contour or prosthetic emergence rather than switching cuff heights drastically. Mapping cuff heights on the model or digital scan before ordering components helps visualize the final platform and allows for early corrections.
A poorly planned screw channel can ruin an otherwise excellent restoration. Screw holes that emerge on the facial surface of anterior teeth or on biting surfaces cause esthetic and functional problems. They can be difficult to seal, prone to food traps, or weaken the prosthesis.
Early restorative-driven implant planning is key. Use angulated MUAs to redirect screw channels to palatal or occlusal surfaces where access is easier and appearance is preserved. Digital planning tools and collaboration with your lab allow you to preview screw channel trajectories and flag problematic angles before fabrication. If a screw channel looks unfavorable, adjusting implant angulation or MUA selection early saves costly remakes and chair time.
Digital workflows rely on precise data. Using scan bodies that don’t match the implant or MUA system leads to inaccurate impressions, poor fit, and delays. Sometimes, clinicians inadvertently scan with implant-level scan bodies when MUAs are in place, or vice versa, confusing the lab.
To prevent these issues, maintain an organized inventory of compatible scan bodies for each implant and MUA type. Document your scanning protocol clearly, whether implant-level or MUA-level scanning is preferred. Share detailed case information with your lab, including implant system, MUA angulation, and cuff height. This clarity reduces guesswork and remakes.
Partnering with an experienced dental lab familiar with MUAs transforms potential pitfalls into smooth workflows. Labs can review your cuff height selections against soft tissue profiles and suggest adjustments before ordering parts. They can evaluate screw channel trajectories digitally and warn if screw access will be esthetically or functionally compromised.
Labs also help verify digital files, ensuring scan bodies match components used. Their input streamlines framework design, improving passive fit and reducing chairside adjustments. Open communication and sharing detailed prescriptions, photos, and scans with your lab creates a feedback loop that catches errors early and enhances predictability.
Multi Unit Abutments (MUAs) differ from conventional abutments mainly in purpose and design. Conventional abutments often support single crowns or short bridges and may be cement-retained. They usually connect directly to implants placed in ideal, parallel positions.
MUAs serve as a platform for screw-retained restorations, especially in full arch or longer-span cases. They accommodate angled implants by correcting their tilt and create a uniform, level prosthetic platform. This makes MUAs essential for complex restorations like All-on-4, where implants are tilted and need a common connection interface.
Choose MUAs when:
Implants are angled or unevenly placed.
A screw-retained full arch or multi-unit prosthesis is planned.
Retrievability of the prosthesis is important for hygiene or maintenance.
You need to elevate the prosthetic platform above soft tissue for better access.
Passive fit of a one-piece framework is critical.
Direct implant restorations may work for single teeth or very short spans with parallel implants. However, MUAs offer more flexibility and long-term benefits in complex or full arch cases.
No. MUAs are not mandatory for every implant case. For single tooth implants or short bridges with favorable implant angulation and soft tissue, direct screw-retained or cemented abutments may suffice.
MUAs become necessary when:
Implant angulation needs correction.
Multiple implants require a unified prosthetic platform.
Retrievability and hygiene access are priorities.
Complex full arch restorations or All-on-4 protocols are used.
Understanding case complexity guides whether MUAs add value.
With proper care, MUAs can last many years—often 10 to 20 years or more. Their longevity depends on:
Oral hygiene quality.
Regular dental checkups.
Avoiding excessive bite forces or trauma.
Proper torque application during placement.
Maintenance includes periodic professional cleaning around abutments and checking screw tightness. If loosening occurs, retorquing or screw replacement may be needed. MUAs are designed for retrievability, allowing safe removal for inspection or repair.
Removal requires a dental professional using the correct driver and torque wrench. Steps include:
Unscrew the prosthetic restoration to expose MUAs.
Use the manufacturer’s recommended driver to loosen MUA screws carefully.
Avoid excessive force to prevent damage to implant or abutment.
If stuck, gentle reverse torque or specialized tools may be needed.
After removal, inspect components for wear or damage before reinstallation.
Proper technique preserves implant integrity and allows component reuse.
Multi Unit Abutments are vital for successful full arch implant restorations. They provide a stable, level platform that corrects implant angulation and improves prosthetic fit. MUAs enhance long-term success by allowing easy maintenance, better hygiene, and retrievability. Incorporating MUAs thoughtfully into implant workflows boosts patient satisfaction and reduces complications. Ketai (Guangzhou) Medical Equipment Co., Ltd. offers high-quality MUAs that deliver reliable performance and support efficient, predictable restorations. Their products add significant value to implant dentistry.
A: A Multi Unit Abutment (MUA) connects the dental implant to the prosthetic restoration, creating a uniform platform that allows for angulation correction and easy prosthesis removal.
A: MUAs correct implant angulation and support screw-retained full arch restorations, offering better hygiene access and retrievability compared to conventional abutments.
A: They create a co-planar platform for even load distribution, improve soft tissue health, and simplify prosthetic design and maintenance.
A: Cost varies by implant system compatibility, angulation, cuff height, and whether straight or angulated MUAs are needed.
A: Careful pre-surgical planning, matching implant connections, selecting correct cuff heights, and collaborating with a skilled dental lab are essential.
