Zirconia All‑ceramic Crown

Brand:
KT Trilink

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Overview

Zirconia all‑ceramic crown – A full‑resin crown fabricated from medical‑grade high‑strength composite resin‑ceramic material (Ceromer) via CAD/CAM milling or traditional hand layering. It combines the toughness of composite resin with the esthetic properties of ceramic, closely mimicking natural teeth in color, translucency, and surface texture. It is indicated for single anterior tooth esthetic restorations, inlays/onlays, and fixed restorations for patients with metal allergies, particularly suitable for cases with moderate esthetic demands and concerns about ceramic brittleness.

Zirconia all‑ceramic crown

Medical‑Grade High‑Translucency Zirconia, CAD/CAM Milled, Compatible with Anterior/Posterior Crown/Bridge & Implant‑Supported Restoration

Superior Aesthetics

excellent translucency and multi‑layered shade effects

With layered veneering porcelain, it delivers lifelike natural tooth appearance, without the light blockage caused by a metal substructure.

CAD/CAM Precision

Marginal fit ≤25 μm

High‑precision CNC machining ensures a marginal fit of ≤25 μm, effectively preventing microleakage and secondary caries.

Strong Bond with Veneering Porcelain

The surface is treated with sandblasting and silanization, ensuring high bond strength with mainstream veneering porcelains and minimizing the risk of chipping.

Stain Resistance

The dense, smooth surface resists pigment penetration from coffee, tea, and other beverages, maintaining long‑term color stability.

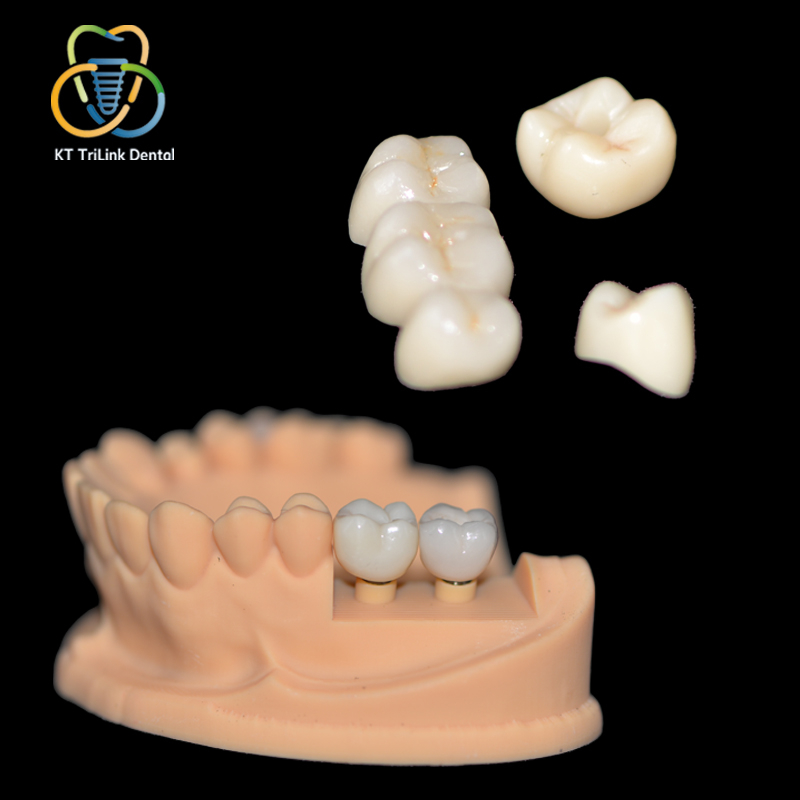

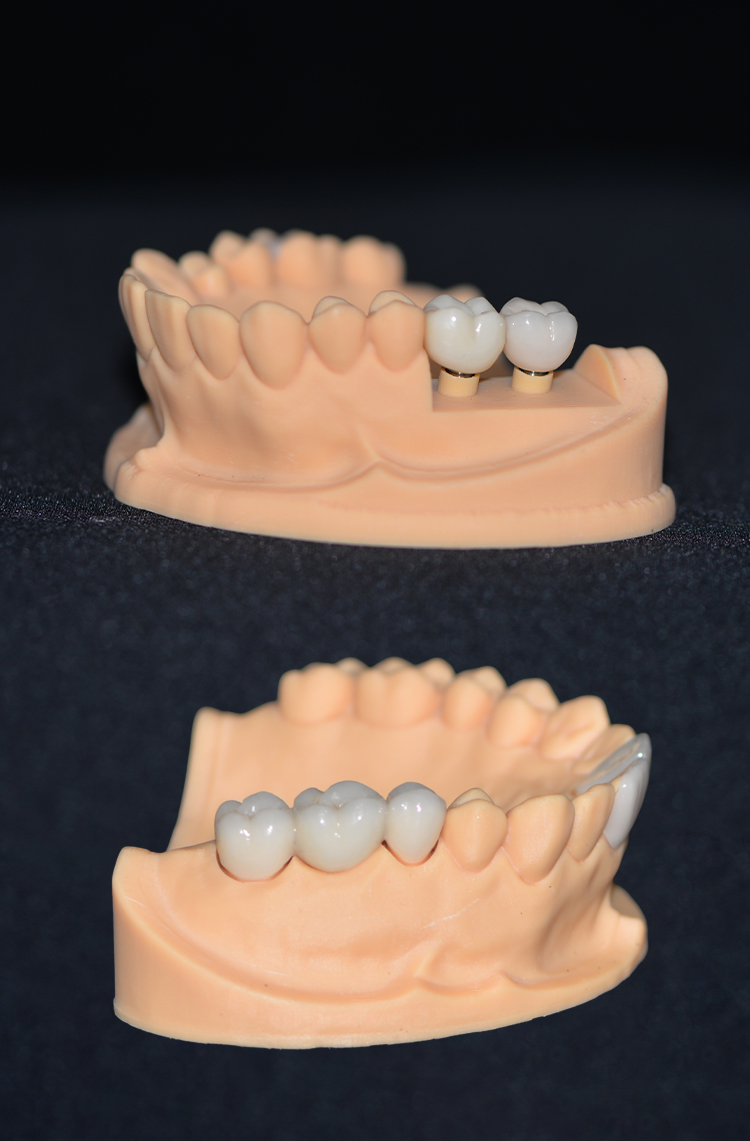

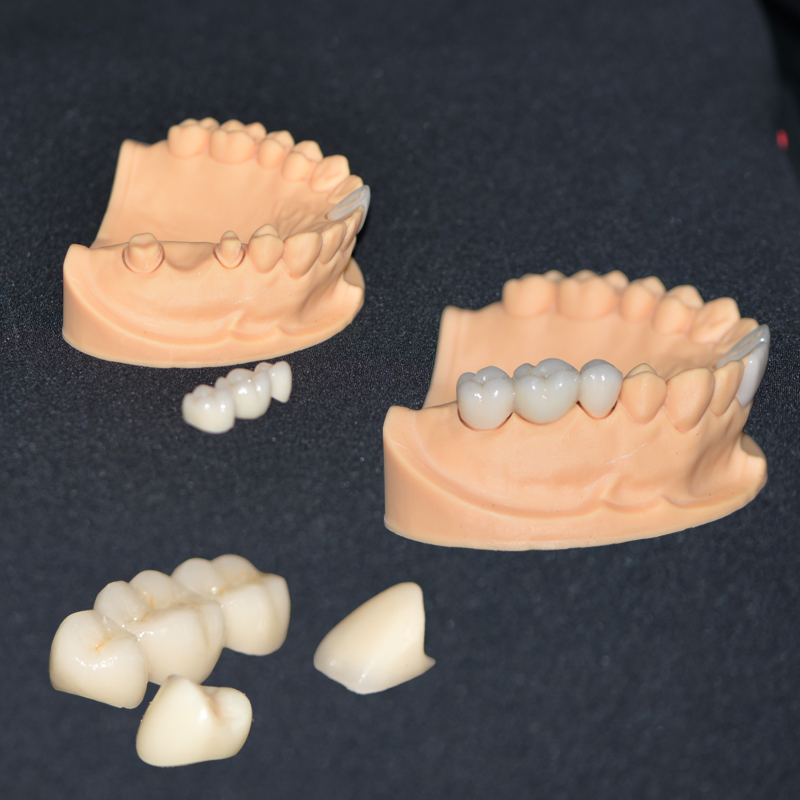

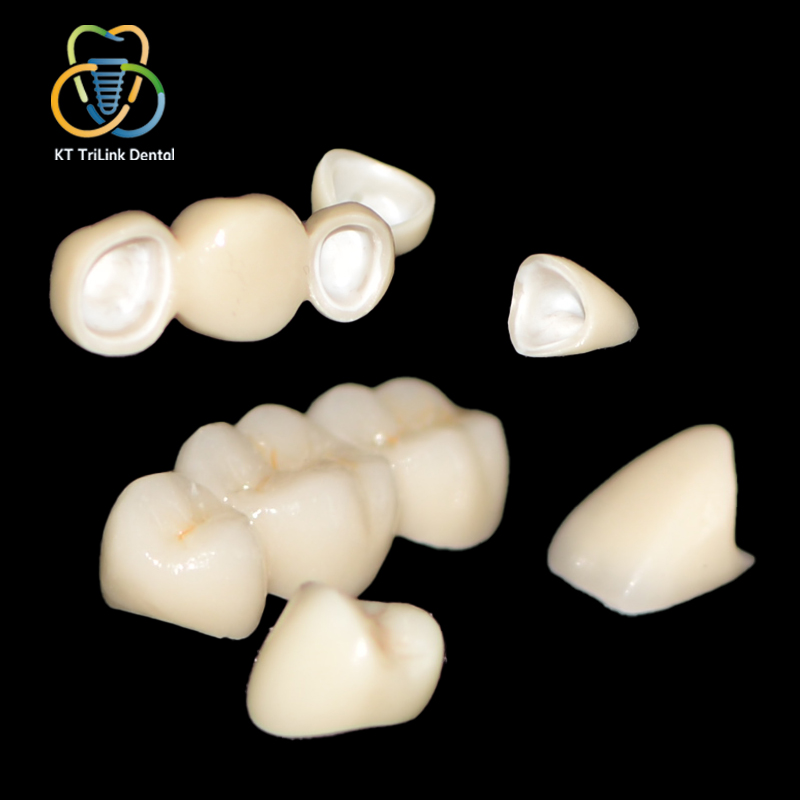

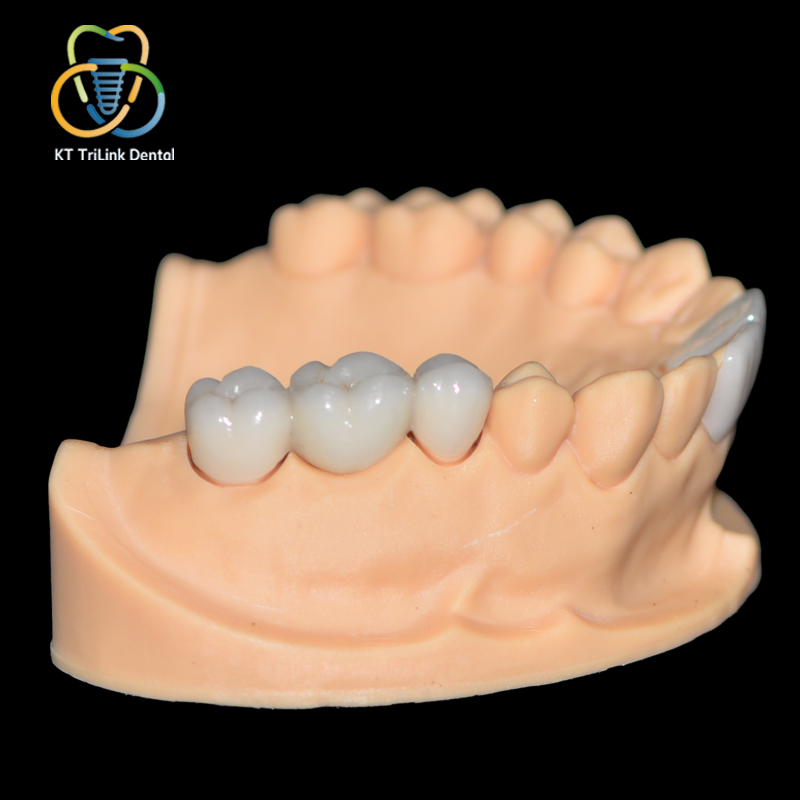

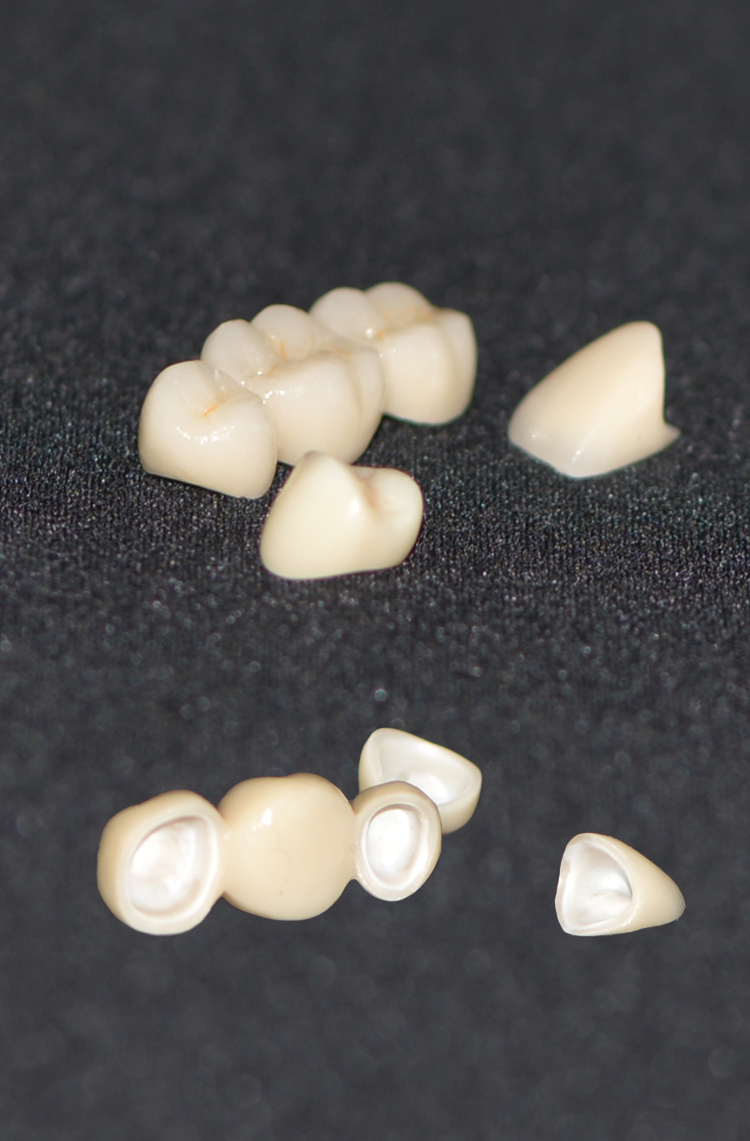

Product photos

Product Specifications

Product Name	Zirconia All‑Ceramic Crown
Brand	KT trilink dental
Material	Medical‑grade high‑translucency zirconia (3Y‑TZP / 4Y‑TZP / 5Y‑TZP)
Material Brands	Bloomden/Yucera/Upcera/3M/Wieland/VITA/Sirona/ivoclar
Flexural Strength	3Y ≥ 1200 MPa / 4Y ≥ 900 MPa / 5Y ≥ 600 MPa
Translucency	3Y (low) / 4Y (medium) / 5Y (high)
Hardness	≥ 1200 HV
Density	~6.05 g/cm³
Coefficient of Thermal Expansion	10.5 × 10⁻⁶/K (matched to veneering porcelain)
Fabrication Method	CAD/CAM CNC milling
Minimum Thickness	Margin ≥ 0.3 mm / Occlusal ≥ 0.5 mm (recommended)
Shade	Pre‑shaded high‑translucency zirconia blocks (A–D shade range available) / White
Veneering Option	Can be used as monolithic crown / Can be layered with veneering porcelain

Our zirconia materials

Brands	Material	Characteristic	Indications for Implant & Restoration
China-Bloomden	Zirconia, CAD/CAM, 1200 MPa	5-layer gradient, 800–1200 MPa, 42–49% translucency, cervical masking	Anterior/posterior crowns & bridges, veneers, inlays, full-arch bridges, implant bridges
China-Yucera	Zirconia, CAD/CAM, 1200 MPa	8-layer stacking, 15-layer gradient, translucency 57%→43%, strength 700→1200 MPa	Partial arch, anterior, posterior, multi-unit bridges
China-Upcera	Zirconia, CAD/CAM, 1200 MPa	Pre-shaded multi-layer, 3-layer stacking, 5-layer gradient, custom internal staining	Single crowns, connected bridges (missing ≤3 teeth), anterior & posterior teeth
USA-3M·LAVA	Zirconia, CAD/CAM, 1100 MPa	High translucency, 8 special-effect stains, 18 stains, 8-year clinical 100% survival rate	Single crowns, long-span bridges, implant crowns & bridges, connected crowns (≤4), inlays/onlays, Maryland bridges, telescopic copings, zirconia abutments
Germany-Wieland	Zirconia, CAD/CAM, 1200 MPa	7 shades, translucent, high strength, marginal fit	Single crowns, connected bridges (missing ≤3 teeth), anterior & posterior teeth
Germany-VITA	Zirconia, CAD/CAM, 1200 MPa	High-translucency zirconia (Y-TZP), high marginal fit	Single crowns, connected bridges (missing ≤3 teeth), anterior & posterior teeth
Germany-Sirona	Zirconia, CAD/CAM, 1200 MPa	Translucent, 5 coping shades, biocompatible	Full-contour crowns, bridges, telescopic copings, bar attachments
Switzerland-ivoclar	Lithium disilicate glass-ceramic, 360–400 MPa	20 coping shades, high aesthetics	Single crowns, connected bridges (missing ≤3 teeth), anterior & posterior teeth, veneers

Fabrication Workflow

Tooth preparation

Prepare the abutment following standard all‑ceramic crown preparation guidelines, ensuring a continuous and rounded shoulder margin.

Digital impression

Obtain a digital model via intraoral scanning, or scan the model after a conventional impression.

CAD design

Design the crown morphology in the software, including thickness, path of insertion, and margin contours.

CAM milling

Mill the crown from a pre‑shaded zirconia block using a CNC milling machine.

Sintering

Sinter the milled zirconia crown in a sintering furnace at high temperature (approximately 1500°C) to achieve full density.

Veneering

Apply veneering porcelain in layers and sinter in a furnace.

Try‑in and glazing

Try in the crown intraorally to verify marginal fit and occlusion, make adjustments, then glaze and finish.

Final cementation

Permanently cement the crown using resin cement.

Indications

Single posterior crown restoration (3Y high‑strength type）

All‑ceramic crown in the anterior aesthetic zone (5Y high‑translucency type)

Multi‑unit all‑ceramic fixed bridge (3–5 units, 3Y high‑strength type)

Implant‑supported all‑ceramic restoration

Patients with metal allergies

All‑ceramic restorations requiring both strength and aesthetics

FAQ

What is the difference between a Ceromer crown and a composite resin crown?

They are essentially the same. Ceromer is a technologically upgraded high‑strength composite resin with optimized filler ratio and resin matrix, offering improved strength, wear resistance, and more stable aesthetics. It is an upgraded version of the composite resin crown.

What are the advantages and disadvantages of a Ceromer crown compared to a zirconia all‑ceramic crown?

How long does a Ceromer crown last?

Does the Ceromer crown discolor easily?

Is the Ceromer crown suitable for posterior restorations?
